EXTERIOR PANELS / TRIM SIDE STRIPE TAPE REMOVAL

Hide Display 1.REMOVE SIDE MUDGUARD (w/ Side Mudguard)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD>REMOVAL201902,201906,_59,_079322,_0385751,RM100000001GNUD,201906,999999,_59,_079322,_0398614,RM100000001IX0E,

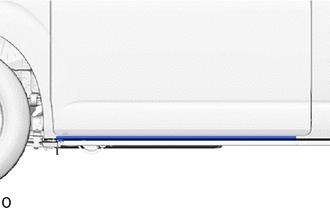

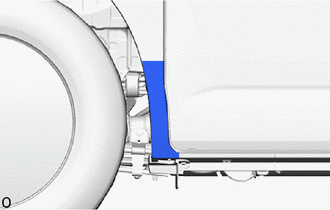

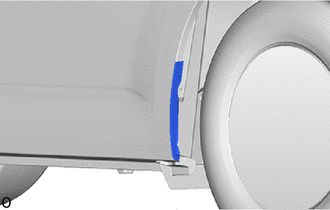

Hide Display 75982C 2.REMOVE FRONT FENDER FRONT STRIPE LH

HINT:: When removing the front fender front stripe LH, heat the vehicle body and front fender front stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Fender Front Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front fender front stripe LH excessively.

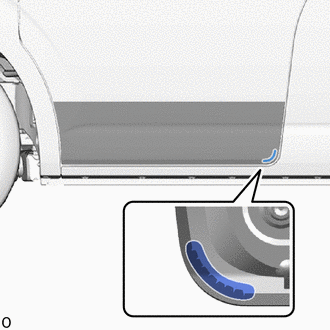

a.

Pull back an edge of the front fender front stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75981C 3.REMOVE FRONT FENDER FRONT STRIPE RH

HINT:: Use the same procedure described for the LH side.

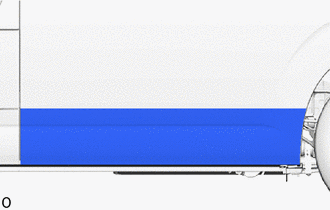

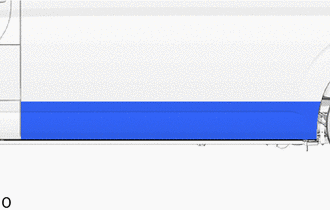

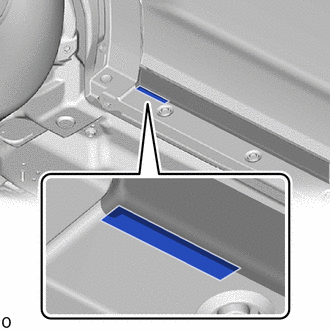

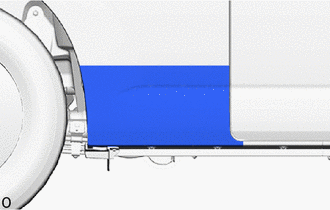

Hide Display 75973H 4.REMOVE FRONT FENDER LOWER STRIPE

HINT:: When removing the front fender lower stripe, heat the vehicle body and front fender lower stripe using a heat light.

Standard Value:

Part	Temperature
Front Fender Lower Stripe	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front fender lower stripe excessively.

a.

for Front Fender Panel:

i.

Pull back an edge of the front fender lower stripe and pull it parallel to the vehicle body to remove it.

HINT:: Use the same procedure for the other side.

b.

for Rocker Panel:

i.

Pull back an edge of the front fender lower stripe and pull it parallel to the vehicle body to remove it.

HINT:: Use the same procedure for the other side.

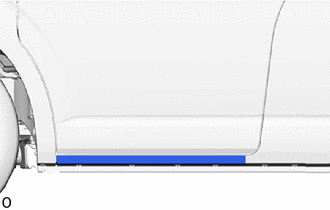

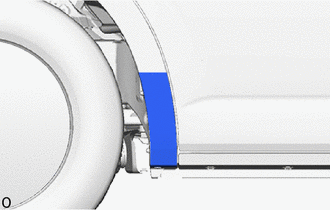

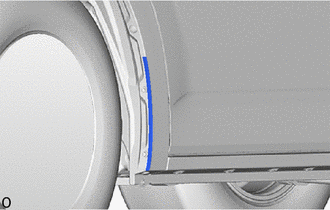

Hide Display 75982B 5.REMOVE FENDER STRIPE LH

HINT:: When removing the fender stripe LH, heat the vehicle body and fender stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Fender Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or fender stripe LH excessively.

a.

Pull back an edge of the fender stripe LH tape and pull it parallel to the vehicle body to remove it.

Hide Display 75981B 6.REMOVE FENDER STRIPE RH

HINT:: Use the same procedure described for the LH side.

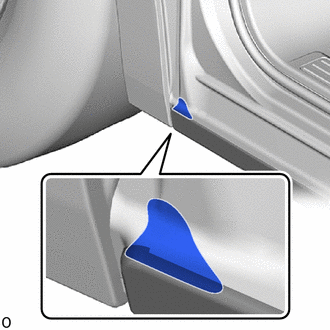

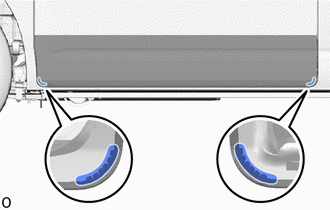

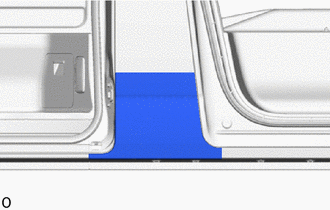

Hide Display 75981E 7.REMOVE FRONT FENDER STRIPE

HINT:: When removing the front fender stripe, heat the vehicle body and front fender stripe using a heat light.

Standard Value:

Part	Temperature
Front Fender Stripe	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front fender stripe excessively.

a.

for Front Door Panel:

i.

Pull back an edge of the front fender stripe and pull it parallel to the vehicle body to remove it.

HINT:: Use the same procedure for the other side.

b.

for Rocker Panel:

i.

Pull back an edge of the front fender stripe and pull it parallel to the vehicle body to remove it.

HINT:: Use the same procedure for the other side.

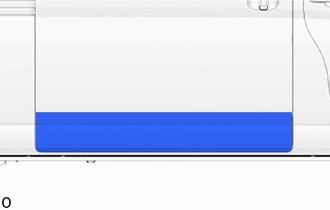

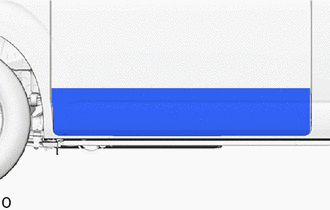

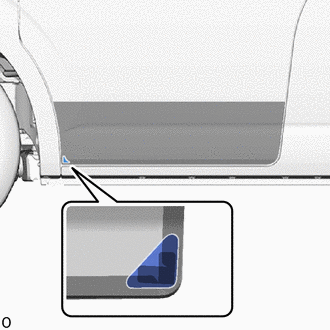

Hide Display 75985F 8.REMOVE FRONT DOOR OUTSIDE STRIPE

HINT:: When removing the front door outside stripe, heat the vehicle body and front door outside stripe using a heat light.

Standard Value:

Part	Temperature
Front Door Outside Stripe	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front door outside stripe excessively.

a.

Pull back an edge of the front door outside stripe and pull it parallel to the vehicle body to remove it.

HINT:: Use the same procedure for the other side.

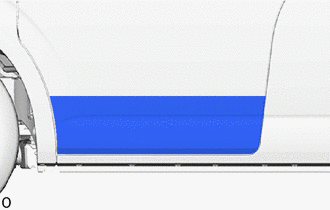

Hide Display 75986 9.REMOVE FRONT DOOR STRIPE LH

HINT:: When removing the front door stripe LH, heat the vehicle body and front door stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Door Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front door stripe LH excessively.

a.

Pull back an edge of the front door stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75985 10.REMOVE FRONT DOOR STRIPE RH

HINT:: Use the same procedure described for the LH side.

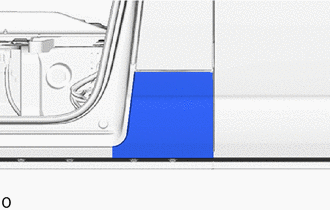

Hide Display 75974E 11.REMOVE FRONT SIDE PANEL STRIPE LH

HINT:: When removing the front side panel stripe LH, heat the vehicle body and front side panel stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Side Panel Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or front side panel stripe LH excessively.

a.

Pull back an edge of the front side panel stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75973F 12.REMOVE FRONT SIDE PANEL STRIPE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 75942C 13.REMOVE CENTER PILLAR STRIPE LH

HINT:: When removing the center pillar stripe LH, heat the vehicle body and center pillar stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Center Pillar Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or center pillar stripe LH excessively.

a.

Pull back an edge of the center pillar stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75941 14.REMOVE CENTER PILLAR STRIPE RH

HINT:: When removing the center pillar stripe RH, heat the vehicle body and center pillar stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Center Pillar Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or center pillar stripe RH excessively.

a.

Pull back an edge of the center pillar stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75983A 15.REMOVE SLIDE DOOR STRIPE

HINT:: When removing the slide door stripe, heat the vehicle body and slide door stripe using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Slide Door Stripe	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or slide door stripe excessively.

a.

for Standard Roof:

i.

Pull back an edge of the slide door stripe and pull it parallel to the vehicle body to remove it.

b.

for High Roof:

i.

Pull back an edge of the slide door stripe and pull it parallel to the vehicle body to remove it.

Hide Display 75983C 16.REMOVE SLIDE DOOR STRIPE RH (for Standard Roof)

HINT:: When removing the slide door stripe RH, heat the vehicle body and slide door stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Slide Door Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or slide door stripe RH excessively.

a.

Pull back an edge of the slide door stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75983C 17.REMOVE SLIDE DOOR STRIPE RH (for High Roof)

HINT:: When removing the slide door stripe RH, heat the vehicle body and slide door stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Slide Door Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or slide door stripe RH excessively.

a.

Pull back an edge of the slide door stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75996D 18.REMOVE REAR BODY STRIPE RH (for Standard Roof)

HINT:: When removing the rear body stripe RH, heat the vehicle body and rear body stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Rear Body Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or rear body stripe RH excessively.

a.

Pull back an edge of the rear body stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75996D 19.REMOVE REAR BODY STRIPE RH (for High Roof)

HINT:: When removing the rear body stripe RH, heat the vehicle body and rear body stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Rear Body Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or rear body stripe RH excessively.

a.

Pull back an edge of the rear body stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75985A 20.REMOVE SIDE PANEL STRIPE RH (for Standard Roof)

HINT:: When removing the side panel stripe RH, heat the vehicle body and side panel stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Side Panel Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or side panel stripe RH excessively.

a.

Pull back an edge of the side panel stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75985A 21.REMOVE SIDE PANEL STRIPE RH (for High Roof)

HINT:: When removing the side panel stripe RH, heat the vehicle body and side panel stripe RH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Side Panel Stripe RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or side panel stripe RH excessively.

a.

Pull back an edge of the side panel stripe RH and pull it parallel to the vehicle body to remove it.

Hide Display 75986A 22.REMOVE SIDE PANEL STRIPE LH (for Standard Roof)

HINT:: When removing the side panel stripe LH, heat the vehicle body and side panel stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Side Panel Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or side panel stripe LH excessively.

a.

Pull back an edge of the side panel stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75986A 23.REMOVE SIDE PANEL STRIPE LH (for High Roof)

HINT:: When removing the side panel stripe LH, heat the vehicle body and side panel stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Side Panel Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or side panel stripe LH excessively.

a.

Pull back an edge of the side panel stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75992A 24.REMOVE QUARTER STRIPE LH

HINT:: When removing the quarter stripe LH, heat the vehicle body and quarter stripe LH using a heat light.

Standard Value:

Part	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Quarter Stripe LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body or quarter stripe LH excessively.

a.

Pull back an edge of the quarter stripe LH and pull it parallel to the vehicle body to remove it.

Hide Display 75991A 25.REMOVE QUARTER STRIPE RH

HINT:: Use the same procedure described for the LH side.

EXTERIOR PANELS / TRIM SIDE STRIPE TAPE REMOVAL

PROCEDURE
