RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389153 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

a.
B541595C02
2.104,2.51 2.354,1.646 2.354,1.646 2.313,2.365 true 0.813,0.656 0.688,0.354 0.688,0.354 1.021,0.74 true 2.302,1.385 2.5,1.563 0.198,0.177 10 true *a 0.542,0.146 0.75,0.344 0.208,0.198 10 true *a

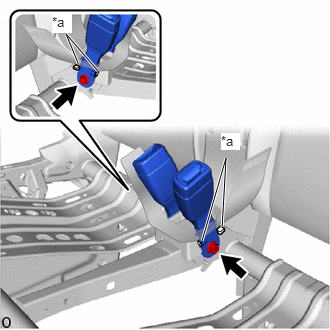

*a Protruding Part


Install the 2 rear seat inner belt assemblies with the 2 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat inner belt assembly to overlap the protruding part.



b.
B540035C04
0,0 0,0 false
V100155

Fastening Tape

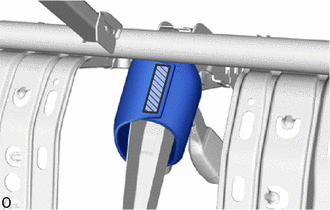

Attach the fastening tape.


Hide 2.INSTALL REAR SEAT CUSHION COVER WITH PAD

a.

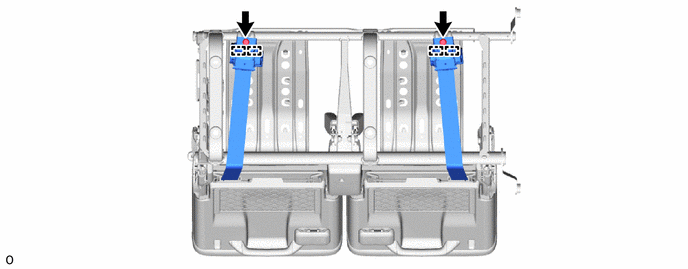

Remove the 2 bolts.

B543331


b.

Detach the guide and remove the 2 retractors


c.

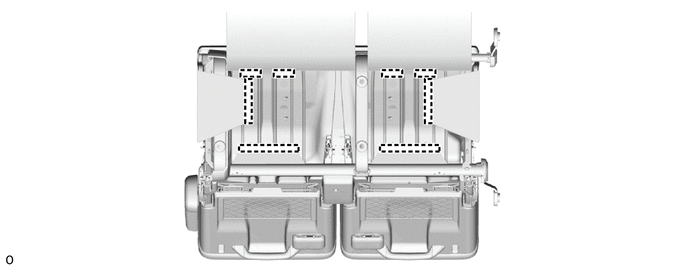

Attach the hook and install the rear seat cushion cover with pad as shown in the illustration.

B541593


d.

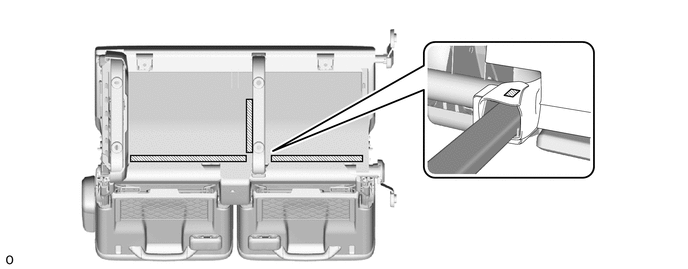

Attach the fastening tape.

B541592C01
0,0 0,0 false
V100155

Fastening Tape - -



e.

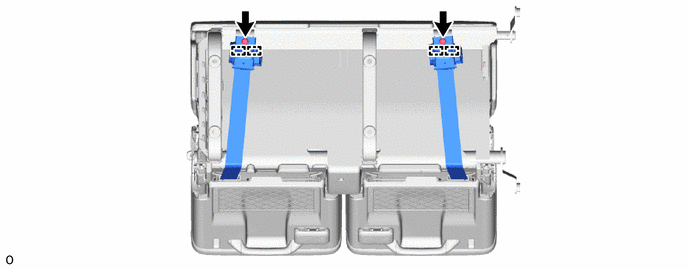

Attach the guide.

B543332


f.

Install the 2 retractors with the 2 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


g.

Check that the ELR locks.

i.

With the retractor installed to the vehicle, check that the belt locks when it is pulled out quickly.



Hide 72525N 7.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.
