RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389155 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.INSPECT REAR SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>INSPECTION201902,999999,_58,_078602,_0389155,RM100000001H6NL,

Hide Display 73370 2.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY LH

a.

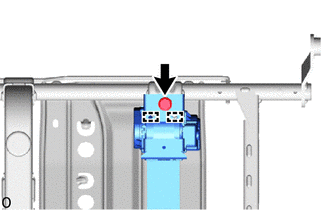

B537040

Attach the guide.

b.

Temporarily install the retractor of the rear seat outer 3 point type belt assembly LH with the bolt.

c.

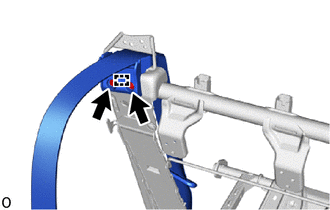

B538315

Attach the guide and install the bezel with the 2 screws.

Hide Display 73350 3.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:: Use the same procedure described for the LH side.

Hide Display 73360 4.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73C75A 5.INSTALL REAR SEAT SHOULDER BELT HOLE COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0026,

Hide Display 73C73H 6.INSTALL REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73375Z 7.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0015,

Hide Display 73C73F 8.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 9.INSTALL NO. 1 SEATBACK COVER WITH PAD LH

HINT:: Use the same procedure for the center seat.

a.

Pass the rear seat outer 3 point type belt assembly LH through the hole of No. 1 seatback cover with pad LH.

b.

B536742

Attach the guide.

c.

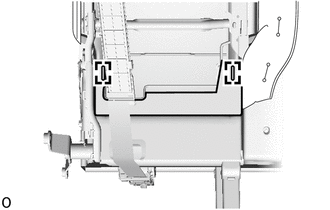

B536737

Insert the No. 1 seatback cover with pad LH under the rear seat shoulder belt hole cover LH.

d.

Attach the hook.

e.

B540423

Attach the hook.

f.

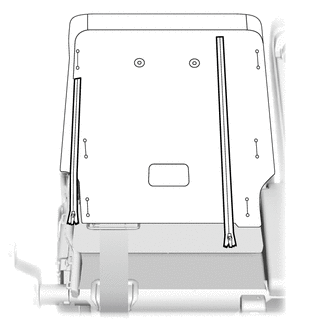

B540422

Close the 2 fasteners.

g.

Insert the 2 fasteners.

B540428

h.

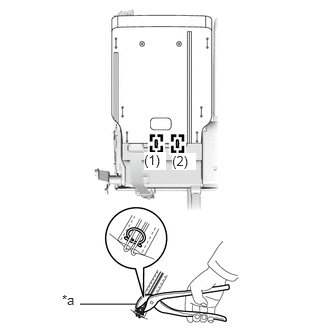

B540429C02

0.833,3.167 1.417,3.167 false 0.646,3.042 0.958,3.198 0.313,0.156 10 false *a 1.792,1.594 2.042,1.771 0.25,0.177 10 true (2) 1.5,1.583 1.729,1.771 0.229,0.188 10 true (1)

*a	Hog Ring Pliers

Using hog ring pliers, install the No. 1 seatback cover with pad LH with the 2 new hog rings in the order indicated in the illustration.

NOTICE:: Be careful not to damage the No. 1 seatback cover with pad LH.

i.

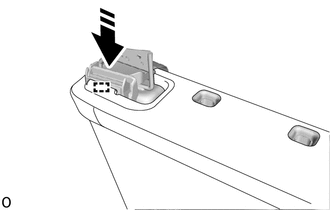

B536735C02

0,0 0,0 false

V113147

Install in this Direction

Attach the guide.

j.

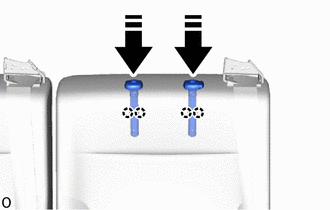

B537051C01

0,0 0,0 false

V113147

Install in this Direction

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.

Hide Display 10.INSTALL NO. 1 SEATBACK COVER WITH PAD RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73370 11.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0058,

Hide Display 73350 12.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY (ANCHOR)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0061,

Hide Display 73360 13.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH (ANCHOR)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0062,

Hide Display 73375Y 14.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0032,

Hide Display 73C73E 15.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73375X 16.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0030,

Hide Display 73C73D 17.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 18.INSTALL REAR SEATBACK BOARD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0035,

Hide Display 74690A 19.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0051,

Hide Display 20.INSTALL REAR SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0055,

Hide Display 73343 21.INSTALL REAR SEAT SHOULDER BELT GUIDE RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0039,

Hide Display 71834S 22.INSTALL REAR NO. 1 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0052,

Hide Display 71833S 23.INSTALL REAR NO. 1 SEAT RECLINING COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 72526J 24.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381332,RM100000001FZL3_02_0043,

Hide Display 72525N 25.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 26.INSTALL REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381332,RM100000001FZL4,
