SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) INSPECTION
PROCEDURE
1.INSPECT REAR SEAT OUTER BELT ASSEMBLY
a.
0.479,1.698 0.344,2.615
0.344,2.615 1.073,2.167
true
0.188,2.552 0.5,2.75
0.313,0.198
10
false
*a
2.906,3.063 3.219,3.26
0.313,0.198
10
false
*b
2.979,1.458 3.292,1.656
0.313,0.198
10
false
*d
2.271,0.229 2.583,0.427
0.313,0.198
10
false
*c

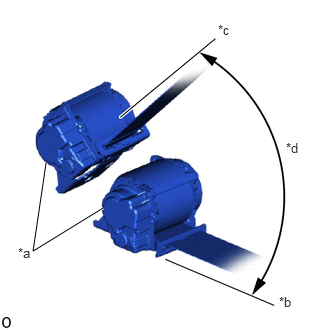

| *a | Retractor |
| *b | Unlock |
| *c | Lock |
| *d | 45° |
Before installing the rear seat outer belt assembly, check the ELR function.
- NOTICE:
-
Do not disassemble the retractor.
i.
When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the rear seat outer belt assembly.
