SEAT BELT REAR CENTER SEAT OUTER BELT ASSEMBLY(for Van) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY
72329G
2.REMOVE REAR NO. 2 SEAT ADJUSTER BOLT COVER
72329F
3.REMOVE REAR SEAT ADJUSTER BOLT COVER
- HINT:
-
Use the same procedure described for the rear No. 2 seat adjuster bolt cover.
72526L
4.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
72525N
5.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH
- HINT:
-
Use the same procedure described for the reclining adjuster release handle LH.
71834J
6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH
71833K
7.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH
- HINT:
-
Use the same procedure described for the LH side.
73340
8.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY LH
73330
9.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY RH
- HINT:
-
Use the same procedure described for the LH side.
10.REMOVE SEAT CUSHION COVER WITH PAD
73320A
11.REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)
Remove the bolt and anchor of the No. 1 seat 3 point type belt assembly LH.
72996J
12.REMOVE NO. 2 REAR SEATBACK COVER
72996H
13.REMOVE REAR SEATBACK COVER (w/ Center Bracket)
- HINT:
-
Use the same procedure described for the No. 2 rear seatback cover.
73375
14.REMOVE REAR SEAT SHOULDER BELT COVER LH
71930Q
15.REMOVE REAR SEAT HEADREST SUPPORT ASSEMBLY
16.REMOVE REAR SEATBACK COVER WITH PAD LH
71802C
17.REMOVE RECLINING ADJUSTER COVER SUB-ASSEMBLY LH
73320A
18.REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

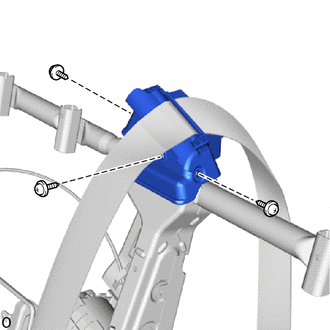

Remove the 3 screws.
|
Open in this Direction |

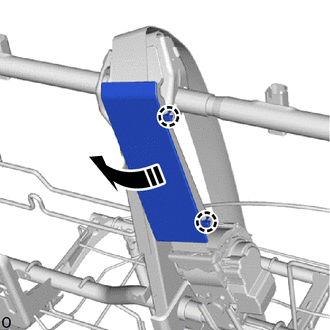

Detach the claw and open the cover as shown in the illustration.

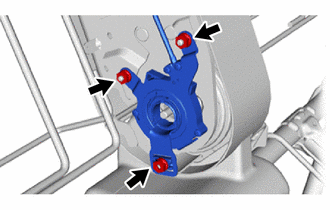

Remove the 3 nuts.

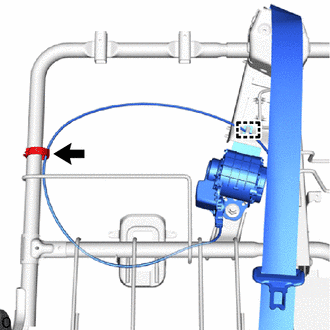

Remove the wiring harness clamp.

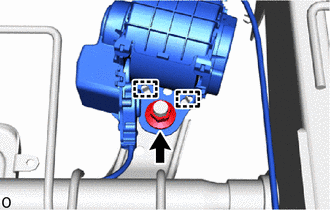

Detach the hook.

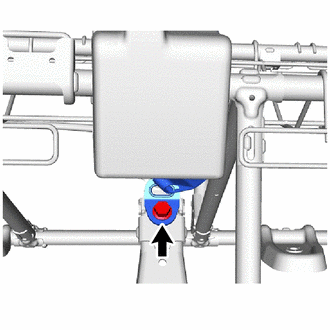

Remove the nut.
Detach the guide and remove the No. 1 seat 3 point type belt assembly LH.
