RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389147 OCCUPANT DETECTION SENSOR(for Fixed Bench Seat Type) A

SEAT BELT  OCCUPANT DETECTION SENSOR(for Fixed Bench Seat Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 71511A 1.INSTALL FRONT SEAT CUSHION PAD RH (OCCUPANT DETECTION SENSOR)

HINT:

When installing a front seat cushion pad RH (occupant detection sensor), refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

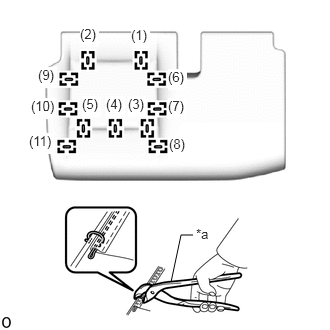

B532259C02
1.781,2.938 1.885,2.448 1.885,2.448 2.01,2.448 false 2.042,2.354 2.354,2.51 0.313,0.156 10 false *a 1.365,0.281 1.563,0.5 0.198,0.219 10 true (1) 0.833,0.271 1.031,0.49 0.198,0.219 10 true (2) 1.333,1 1.521,1.219 0.188,0.219 10 true (3) 1.104,1 1.302,1.219 0.198,0.219 10 true (4) 0.854,1 1.052,1.219 0.198,0.219 10 true (5) 1.75,0.719 1.948,0.938 0.198,0.219 10 true (6) 1.75,1.021 1.948,1.24 0.198,0.219 10 true (7) 1.76,1.417 1.958,1.635 0.198,0.219 10 true (8) 0.396,0.698 0.594,0.917 0.198,0.219 10 true (9) 0.323,1.021 0.583,1.24 0.26,0.219 10 true (10) 0.302,1.385 0.563,1.604 0.26,0.219 10 true (11)
*a Hog Ring Pliers


Using hog ring pliers, install the front seat cushion pad RH (occupant detection sensor) with the 11 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the front seat cushion cover sub-assembly RH.


·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly RH.




Hide 2.INSTALL FRONT SEAT CUSHION COVER WITH PAD

a.

Set the front seat cushion cover with pad.


b.
B541898

Attach the claw.


c.

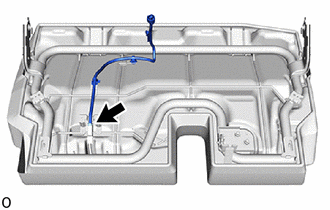

B541896

Connect the connector.


Hide 71867Y 6.INSTALL RH SEAT FRONT SEAT CUSHION SHIELD RH

HINT:

Use the same procedure described for the LH side.


Hide 7.INSTALL FRONT SEAT CUSHION ASSEMBLY

a.

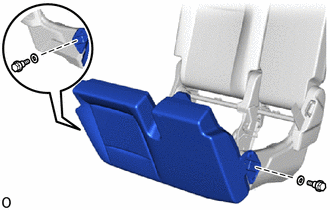

B532252

Install the front seat cushion assembly with the 2 rear seatback hinge spacers and 2 bolts.


b.

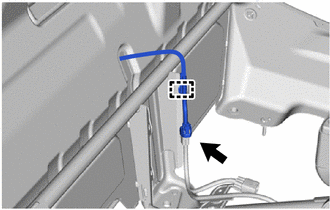

B532251

Attach the clamp.


c.

Connect the connector.


Hide 71832F 8.INSTALL RH SEAT FRONT SEAT HINGE COVER LH

a.

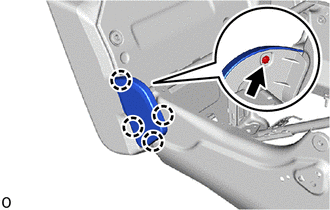

B532242

Attach the claw.


b.

Install the RH seat front seat hinge cover LH with the screw.


Hide 71831C 9.INSTALL RH SEAT FRONT SEAT HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


a.

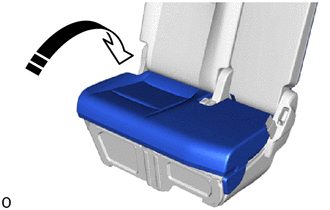

B532247C02
0,0 0,0 false
V113147

Close in this Direction


Close the front seat cushion assembly as shown in the illustration.
