RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389147 OCCUPANT DETECTION SENSOR(for Fixed Bench Seat Type) A

SEAT BELT OCCUPANT DETECTION SENSOR(for Fixed Bench Seat Type) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.REMOVE FRONT SEAT ASSEMBLY RH

Hide Display 71832F 2.REMOVE RH SEAT FRONT SEAT HINGE COVER LH

2.438,1.01 2.635,0.875 true 2.635,0.708 2.813,0.896 0.177,0.188 10 true *1

*1	Front Seat Cushion Lock Band Assembly RH
	Remove in this Direction

Pull the seat lock band assembly and lift up the front seat cushion assembly.

Remove the screw.

Detach the claw and remove the RH seat front seat hinge cover LH.

Hide Display 71831C 3.REMOVE RH SEAT FRONT SEAT HINGE COVER RH

Hide Display 4.REMOVE FRONT SEAT CUSHION ASSEMBLY

Disconnect the connector.

Detach the clamp.

Remove the 2 bolts, 2 rear seatback hinge spacers and front seat cushion assembly.

Hide Display 71868P 5.REMOVE RH SEAT FRONT SEAT CUSHION SHIELD LH

Hide Display 71867Y 6.REMOVE RH SEAT FRONT SEAT CUSHION SHIELD RH

Hide Display 71396H 7.REMOVE FRONT SEAT REAR SUPPORT CUSHION RH

Hide Display 72927E 8.REMOVE FRONT SEAT CUSHION UNDER COVER RH

Hide Display 9.REMOVE FRONT SEAT CUSHION COVER WITH PAD

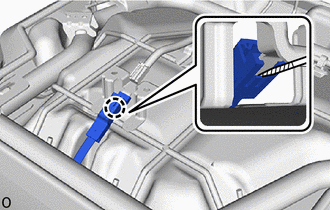

Disconnect the connector.

0,0 0,0 false

Protective Tape

Using a thin-bladed screwdriver, detach the claw.

Remove the front seat cushion cover with pad.

Hide Display 71511A 10.REMOVE FRONT SEAT CUSHION PAD RH (OCCUPANT DETECTION SENSOR)

Remove the 11 hog rings and front seat cushion pad RH (occupant detection sensor).
