RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389042 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 4-Passenger Seat) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 4-Passenger Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

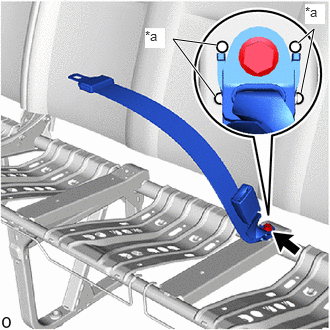

Hide Display 73460A 1.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY LH

2.24,1 1.802,0.406 1.802,0.406 2.26,0.469 true 3.135,0.969 3.271,0.302 3.271,0.302 3.104,0.448 true 1.51,0.292 1.719,0.5 0.208,0.208 10 true *a 3.177,0.042 3.385,0.25 0.208,0.208 10 true *a

*a	Protruding Part

Tighten the bolt and install the rear center seat inner belt assembly LH.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear center seat inner belt assembly LH to overlap the protruding part.

Hide Display 73470A 2.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the rear center seat inner belt assembly LH.

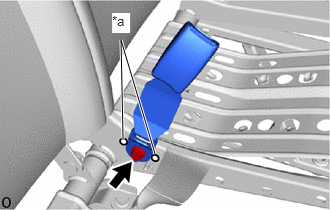

Hide Display 73380D 3.INSTALL REAR SEAT INNER BELT ASSEMBLY LH

1.281,1.448 1.26,0.417 1.26,0.417 1.615,1.604 true 1.167,0.135 1.354,0.344 0.188,0.208 10 true *a

*a	Protruding Part

Install the rear seat inner belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner belt assembly LH to overlap the protruding part.

Hide Display 4.INSTALL SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0003,

Hide Display 73330G 5.INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Commuter, 4-Passenger Seat)>INSTALLATION201902,999999,_58,_078602,_0389041,RM100000001H54Y_01_0006,

Hide Display 71834J 6.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0018,

Hide Display 79967U 7.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0022,

Hide Display 79967T 8.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0023,

Hide Display 79967V 9.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0024,

Hide Display 71868T 10.INSTALL REAR SEAT INNER NO. 1 CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0019,

Hide Display 73380A 11.INSTALL REAR SEAT INNER BELT ASSEMBLY RH

1.281,1.479 1.344,0.438 1.344,0.438 1.573,1.667 true 1.26,0.135 1.458,0.333 0.198,0.198 10 true *a

*a	Protruding Part

Install the rear seat inner belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner belt assembly RH to overlap the protruding part.

Hide Display 71833K 12.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REASSEMBLY201902,999999,_58,_078601,_0381333,RM100000001FZL8_02_0020,

Hide Display 13.INSTALL REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>INSTALLATION201902,999999,_58,_078601,_0381333,RM100000001FZL9,
