SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 4-Passenger Seat) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Hide Display 71833K 2.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

Hide Display 73380A 3.REMOVE REAR SEAT INNER BELT ASSEMBLY RH

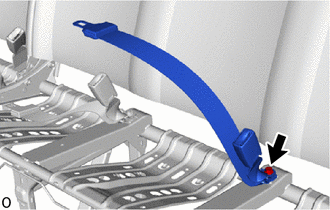

Remove the bolt and rear seat inner belt assembly RH.

Hide Display 71868T 4.REMOVE REAR SEAT INNER NO. 1 CUSHION SHIELD LH

Hide Display 79967V 5.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

Hide Display 79967T 6.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

Hide Display 79967U 7.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

Hide Display 71834J 8.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

Hide Display 73330G 9.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY LH

Hide Display 10.REMOVE SEAT CUSHION COVER WITH PAD

Hide Display 73460A 11.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY LH

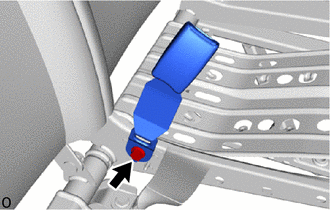

Loosen the bolt and remove the rear center seat inner belt assembly LH.

Hide Display 73470A 12.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the rear center seat inner belt assembly LH.

Hide Display 73380D 13.REMOVE REAR SEAT INNER BELT ASSEMBLY LH

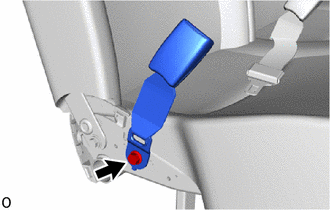

Remove the bolt and rear seat inner belt assembly LH.
