RM35X0E _55 Steering _079314 STEERING GEAR / LINKAGE _0388802 STEERING GEAR(for LHD) A

STEERING GEAR / LINKAGE STEERING GEAR(for LHD) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rack and pinion power steering gear assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front wheel alignment adjustment	w/ VSC OFF Switch: · Perform reset memory · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(201902,999999,_54,_078667,_0385049,RM100000001GK1P,)

PROCEDURE

Hide Display 1.PLACE FRONT WHEELS FACING STRAIGHT AHEAD

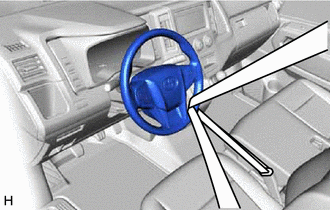

Hide Display 2.SECURE STEERING WHEEL ASSEMBLY

Secure the steering wheel assembly with the seat belt in order to prevent rotation.

HINT:: This operation is useful to prevent damage to the spiral cable sub-assembly.

Hide Display 3.REMOVE FRONT WHEELS

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL201902,999999,_53,_079312,_0387328,RM100000001GWFZ,

Hide Display 51406A 4.REMOVE NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

for 7GR-FKS: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0148,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0148,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0148,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0148,

for 1GD-FTV: Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_079219,_0384428,RM100000001GGNB_01_0082,201906,202005,_51,_079219,_0384428,RM100000001IW72_01_0082,202005,202107,_51,_079219,_0384428,RM100000001M30O_01_0082,202107,202208,_51,_079219,_0384428,RM100000001WWCN_01_0082,202208,202310,_51,_079219,_0384428,RM1000000026Z0L_01_0082,202310,999999,_51,_079219,_0384428,RM100000002G5CF_01_0082,

Hide Display 52618 5.REMOVE LOWER FRONT BUMPER ABSORBER

for 7GR-FKS: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0067,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0067,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0067,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0067,

for 1GD-FTV: Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_079219,_0384428,RM100000001GGNB_01_0083,201906,202005,_51,_079219,_0384428,RM100000001IW72_01_0083,202005,202107,_51,_079219,_0384428,RM100000001M30O_01_0083,202107,202208,_51,_079219,_0384428,RM100000001WWCN_01_0083,202208,202310,_51,_079219,_0384428,RM1000000026Z0L_01_0083,202310,999999,_51,_079219,_0384428,RM100000002G5CF_01_0083,

Hide Display 51405A 6.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

for 7GR-FKS: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0052,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0052,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0052,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0052,

for 1GD-FTV: Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_079219,_0384428,RM100000001GGNB_01_0084,201906,202005,_51,_079219,_0384428,RM100000001IW72_01_0084,202005,202107,_51,_079219,_0384428,RM100000001M30O_01_0084,202107,202208,_51,_079219,_0384428,RM100000001WWCN_01_0084,202208,202310,_51,_079219,_0384428,RM1000000026Z0L_01_0084,202310,999999,_51,_079219,_0384428,RM100000002G5CF_01_0084,

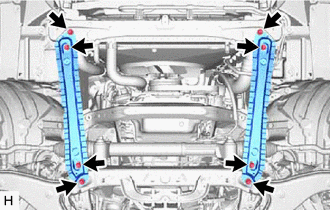

Hide Display 51108C 7.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY

Remove the 8 bolts and 2 rear side rail reinforcement sub-assembly.

Hide Display 45047 8.DISCONNECT TIE ROD END SUB-ASSEMBLY LH

Remove the cotter pin and nut.

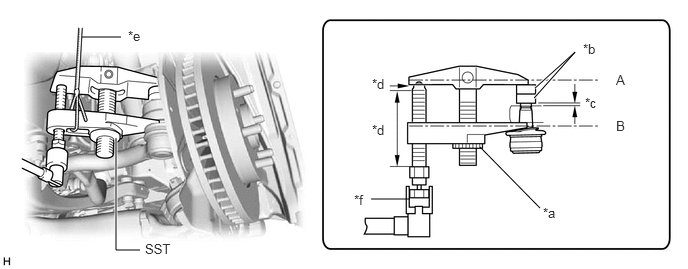

Install 2 spacers (09961-02080) to the steering knuckle LH as shown in the illustration.

0.854,0.385 1.26,0.385 false 3.865,2.073 4.271,2.073 false 5.625,2.167 5,1.531 false 5.573,0.917 5.99,0.542 5.99,0.542 5.563,1.021 true 1.458,2.604 1.208,2.604 1.208,2.604 1.208,1.438 true 3.688,2 4,2.198 0.313,0.198 10 false *f 1.333,0.292 1.646,0.49 0.313,0.198 10 false *e 5.656,2.135 5.969,2.333 0.313,0.198 10 false *a 6.417,0.75 6.729,0.948 0.313,0.198 10 false A 6.417,1.229 6.729,1.427 0.313,0.198 10 false B 3.875,1.271 4.188,1.469 0.313,0.198 10 false *d 3.875,0.792 4.188,0.99 0.313,0.198 10 false *d 6.094,0.99 6.406,1.188 0.313,0.198 10 false *c 6.073,0.427 6.385,0.625 0.313,0.198 10 false *b 1.51,2.51 1.906,2.708 0.396,0.198 10 false SST

*a	Center Nut	*b	SST (09961-02080)
*c	1 mm (0.0394 in.)	*d	Molybdenum grease application area
*e	String	*f	Place wrench here

SST: 09961-02080

NOTICE:: Make sure that the clearance between the tie rod assembly LH and spacers (09961-02080) is 1 mm (0.0394 in.) or more to prevent damage to SST.

Using SST, separate the tie rod assembly LH from steering knuckle LH.

SST: 09960-20010 (09961-02010)

CAUTION:: Apply molybdenum grease to the bolt threads and the tip of SST.

NOTICE:: ·

Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.

·

Install SST so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.

·

Be sure to place the wrench on the part shown in the illustration.

·

Do not damage the ball joint dust cover.

·

Do not damage the steering knuckle.

·

Do not damage the front disc brake dust cover.

Hide Display 45046 9.DISCONNECT TIE ROD END SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 10.DISCONNECT INTERMEDIATE SHAFT ASSEMBLY

2.76,0.875 2.49,0.583 2.49,0.583 2.771,0.781 true 2.302,0.448 2.615,0.646 0.313,0.198 10 false *a

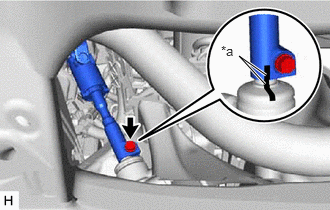

Matchmark

Put matchmarks on the intermediate shaft assembly and rack and pinion power steering gear assembly.

0,0 0,0 false

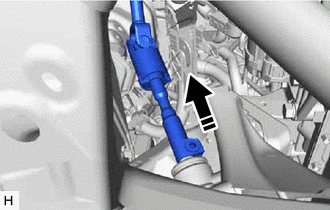

Remove in this Direction

Remove the bolt and intermediate shaft assembly from the rack and pinion power steering gear assembly.

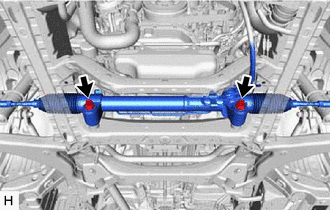

Hide Display 44250 11.REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY

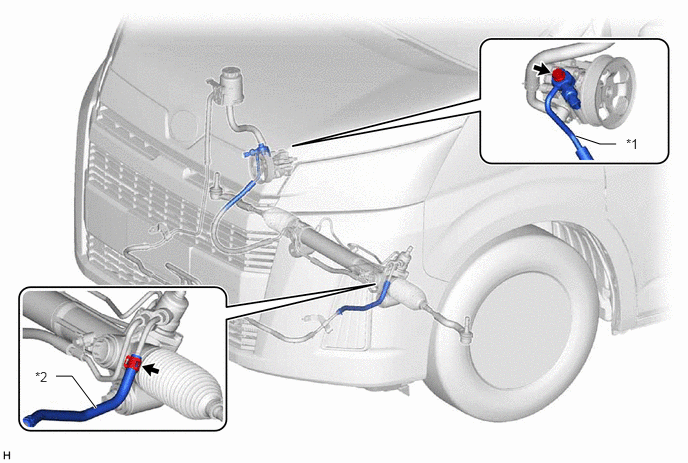

for 1GD-FTV:

1.333,4 1.667,4.25 1.667,4.25 1.833,4.25 true 6.469,0.865 6.469,0.635 6.469,0.635 6.604,0.635 true 1.865,4.156 2.125,4.333 0.26,0.177 10 true *2 6.635,0.573 6.948,0.729 0.313,0.156 10 true *1

Pressure Feed Tube

Return Hose

Slide the clip and disconnect the return hose.

ii.

Remove the union bolt and disconnect the pressure feed tube.

iii.

Remove the gasket.

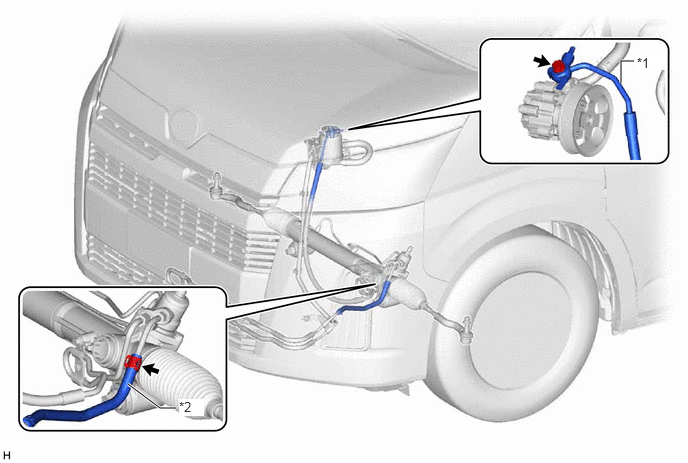

for 7GR-FKS:

0.583,3.917 0.75,3.917 0.75,3.917 1,4.25 true 6,1.417 6.25,1.5 6.25,1.5 6.417,1.5 true 6.521,1.417 6.833,1.573 0.313,0.156 10 false *1 0.365,3.844 0.677,4 0.313,0.156 10 false *2
