RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387846 FRONT SEAT INNER BELT ASSEMBLY(for Fixed Bench Seat Type) A

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Fixed Bench Seat Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73230 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY RH

a.

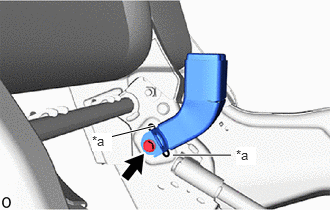

B533349C01
1.146,1.427 1.604,1.313 true 1.802,1.615 2.406,1.615 true 2.458,1.531 2.667,1.719 0.208,0.188 10 true *a 0.958,1.385 1.167,1.573 0.208,0.188 10 true *a
*a Protruding Part


Tighten the bolt and install the front seat inner belt assembly RH.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.



b.
B533347

w/ Seat Belt Warning System:

i.

Attach the claw and clamp.


ii.

Connect the connector.



c.

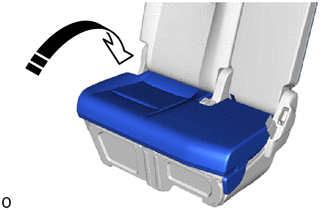

B532247C01
0,0 0,0 false
V113147

Close in this Direction


Close the front seat cushion assembly as shown in the illustration.
