SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Fixed Bench Seat Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73230 2.REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

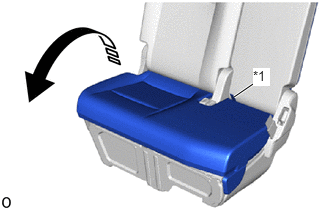

a.
B532246C01
2.438,1.01 2.635,0.875 true 2.635,0.708 2.813,0.896 0.177,0.188 10 true *1
*1 Front Seat Cushion Lock Band Assembly RH
V113147

Remove in this Direction


Pull the seat lock band assembly and lift up the front seat cushion assembly.

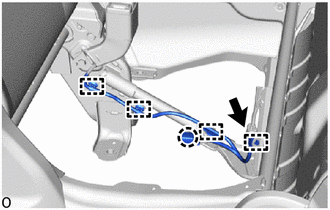

b.
B533347

w/ Seat Belt Warning System:

i.

Disconnect the connector.


ii.

Detach the claw and clamp.

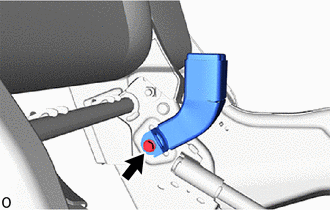

c.
B533348

Loosen the bolt and remove the front seat inner belt assembly RH.
