SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Folding Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73380P 1.INSTALL SPACE UP SEAT REAR SEAT BELT ASSEMBLY RH (w/ Under Cover)

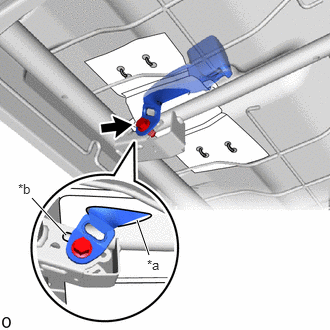

a.
B536560C01
0.333,2.063 0.688,2.448 true 1.427,2.292 1.552,2.656 true 0.188,1.885 0.5,2.042 0.313,0.156 10 false *b 1.531,2.677 1.844,2.833 0.313,0.156 10 false *a
*a Hole
*b Protruding Part


Pass the space up seat rear seat belt assembly RH through the hole of the rear seat cushion assembly LH.


b.

Install the space up seat rear seat belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the space up seat rear seat belt assembly RH to overlap the protruding part.



Hide 73380Q 2.INSTALL SPACE UP SEAT REAR SEAT BELT ASSEMBLY LH (w/ Under Cover)

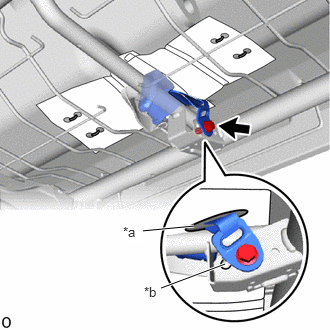

a.
B536558C01
1.677,3 2.344,2.75 true 1.469,2.406 2.021,2.354 true 1.5,2.958 1.813,3.115 0.313,0.156 10 false *b 1.281,2.333 1.49,2.521 0.208,0.188 10 true *a
*a Hole
*b Protruding Part


Pass the space up seat rear seat belt assembly LH through the hole of the rear seat cushion assembly LH.


b.

Install the space up seat rear seat belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the space up seat rear seat belt assembly LH to overlap the protruding part.


HINT:

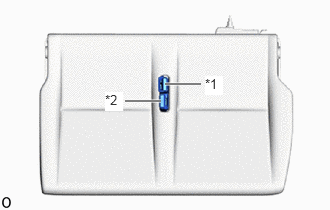

B541891C01
1.719,0.875 2.094,0.875 true 1.302,1.052 1.677,1.052 true 2.135,0.792 2.323,0.99 0.188,0.198 10 true *1 1.094,0.958 1.281,1.156 0.188,0.198 10 true *2
*1 Space Up Seat Rear Seat Belt Assembly LH
*2 Space Up Seat Rear Seat Belt Assembly RH


Install the space up seat rear seat belt assembly as shown in the illustration.



Hide 73380P 7.INSTALL SPACE UP SEAT REAR SEAT BELT ASSEMBLY RH (w/o Under Cover)

a.
B536560C01
0.333,2.063 0.688,2.448 true 1.427,2.292 1.552,2.656 true 0.188,1.885 0.5,2.042 0.313,0.156 10 false *b 1.531,2.677 1.844,2.833 0.313,0.156 10 false *a
*a Hole
*b Protruding Part


Pass the space up seat rear seat belt assembly RH through the hole of the rear seat cushion assembly LH.


b.

Install the space up seat rear seat belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the space up seat rear seat belt assembly RH to overlap the protruding part.



Hide 73380Q 8.INSTALL SPACE UP SEAT REAR SEAT BELT ASSEMBLY LH (w/o Under Cover)

a.
B536558C01
1.677,3 2.344,2.75 true 1.469,2.406 2.021,2.354 true 1.5,2.958 1.813,3.115 0.313,0.156 10 false *b 1.281,2.333 1.49,2.521 0.208,0.188 10 true *a
*a Hole
*b Protruding Part


Pass the space up seat rear seat belt assembly LH through the hole of the rear seat cushion assembly LH.


b.

Install the space up seat rear seat belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the space up seat rear seat belt assembly LH to overlap the protruding part.


HINT:
B541891C01
1.719,0.875 2.094,0.875 true 1.302,1.052 1.677,1.052 true 2.135,0.792 2.323,0.99 0.188,0.198 10 true *1 1.094,0.958 1.281,1.156 0.188,0.198 10 true *2
*1 Space Up Seat Rear Seat Belt Assembly LH
*2 Space Up Seat Rear Seat Belt Assembly RH


Install the space up seat rear seat belt assembly as shown in the illustration.



c.

Attach the hook.

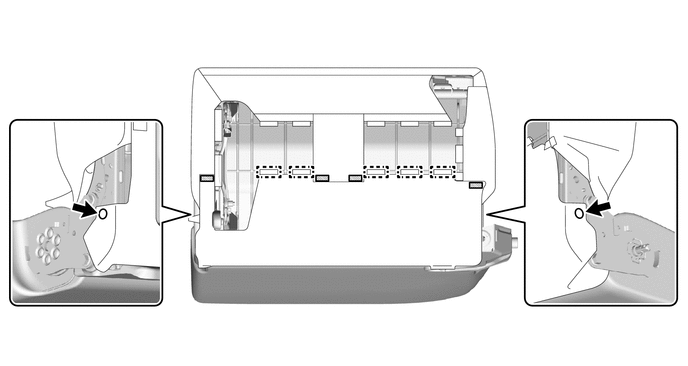

B536554C04
0,0 0,0 false
V100135

Rear Seat Cushion Spring Clip LH
V100155

Fastening Tape



d.

Install the 2 rear seat cushion spring clips LH.


e.

Attach the fastening tape.


Hide 73390 16.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) (w/ Under Cover, for 3 Point Type Rear Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Folding Type)>INSTALLATION
