SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Folding Type) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY LH
73233D
2.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Under Cover)
73390
3.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) (w/ Under Cover, for 3 Point Type Rear Seat Belt)
71629G
4.REMOVE REAR SEAT CUSHION HINGE COVER (w/ Under Cover)
71499U
5.REMOVE SEAT CUSHION SPRING DAMPER LH (w/ Under Cover)
71384C
6.REMOVE REAR SEAT REAR CUSHION SET BRACKET LH (w/ Under Cover)
79329B
7.REMOVE REAR SEAT REAR LEG BRACKET LH (w/ Under Cover)
72526L
8.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
71834S
9.REMOVE REAR SEAT NO. 1 RECLINING COVER LH
71834R
10.REMOVE REAR SEAT RECLINING COVER LH
73380Q
11.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY LH (w/o Under Cover)

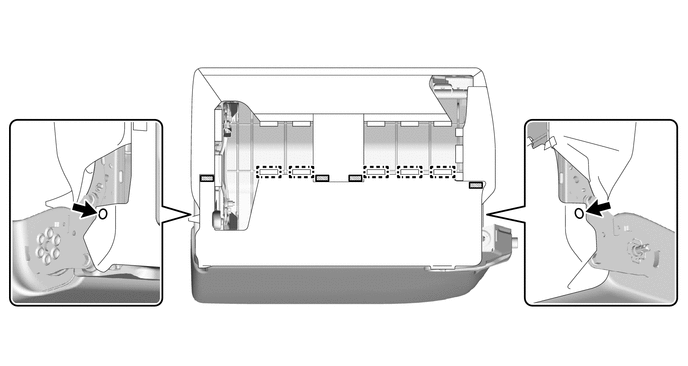

Detach the fastener tape.
|
Rear Seat Cushion Spring Clip LH |
|
Fastening Tape |
Detach the hook.
Using a clip remover, remove the 2 rear seat cushion spring clips LH.
Remove the bolt and space up seat rear seat belt assembly LH.
73380P
12.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY RH (w/o Under Cover)
Remove the bolt and space up seat rear seat belt assembly RH.
13.REMOVE REAR SEATBACK ASSEMBLY (w/ Under Cover)
79328A
14.REMOVE REAR SEAT FRONT LEG BRACKET LH (w/ Under Cover)
79408C
15.REMOVE REAR SEAT HOOK SUB-ASSEMBLY LH (w/ Under Cover)
72928E
16.REMOVE REAR SEAT CUSHION UNDER COVER LH (w/ Under Cover)
73380Q
17.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY LH (w/ Under Cover)
Remove the bolt and space up seat rear seat belt assembly LH.
73380P
18.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY RH (w/ Under Cover)
Remove the bolt and space up seat rear seat belt assembly RH.
