RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387533 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73370 2.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY LH (w/ Seatback Board)

a.

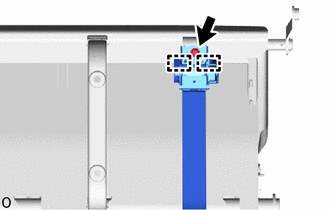

B538318

Attach the guide.


b.

Install the retractor of the rear seat outer 3 point type belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


c.

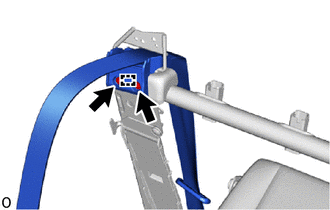

B538317

Attach the guide.


d.

Install the bezel of the rear seat outer 3 point type belt assembly LH with the 2 screws.


Hide 73350 3.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:

Use the same procedure described for the LH side.


Hide 73C73H 5.INSTALL REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73C73F 7.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 8.INSTALL NO. 1 SEATBACK COVER WITH PAD LH (w/ Seatback Board)

a.

Pass the rear seat outer 3 point type belt assembly LH through the hole of No. 1 seatback cover with pad LH.


b.
B536742

Attach the guide.


c.
B536737

Insert the No. 1 seatback cover with pad LH under the rear seat shoulder belt hole cover LH.


d.

Attach the hook.


e.
B541844

Attach the hook.


f.

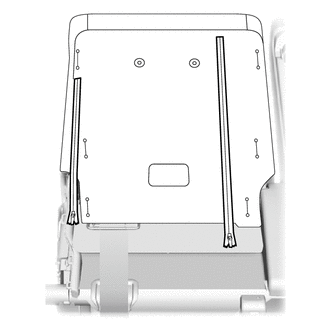

B541843

Close the 2 fasteners.


g.

Insert the 2 fasteners.

B540428


h.

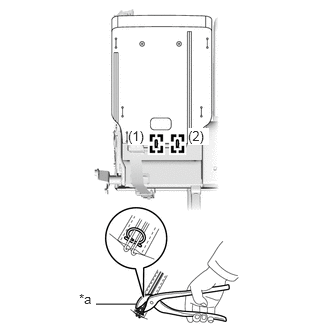

B540429C01
1,3.167 1.417,3.167 false 1.333,1.333 1.542,1.51 0.208,0.177 10 true (1) 1.958,1.333 2.177,1.51 0.219,0.177 10 true (2) 0.823,3.031 1.135,3.229 0.313,0.198 10 false *a
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover with pad LH with the 2 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover with pad LH.



i.

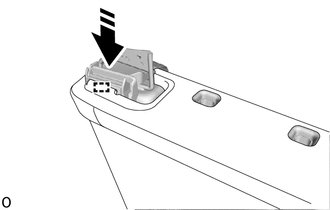

B536735C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


j.

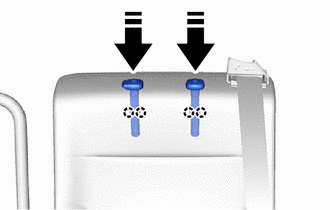

B540440C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


k.

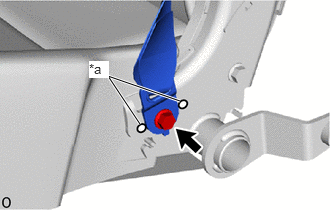

B536728C02
1.458,1.292 1.125,0.792 1.125,0.792 1.875,1.052 true 0.927,0.635 1.135,0.813 0.208,0.177 10 true *a
*a Protruding Part


Install the anchor of the rear seat outer 3 point type belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat outer 3 point type belt assembly LH to overlap the protruding part.



l.

Check that the ELR locks.

i.

With the rear seat outer 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.



Hide 9.INSTALL NO. 1 SEATBACK COVER WITH PAD RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 10.INSTALL NO. 1 SEATBACK COVER WITH PAD RH (w/o Seatback Board)

a.

Pass the rear center seat lap type belt assembly through the hole of No. 1 seatback cover with pad RH.


b.
B536703

Attach the guide.


c.

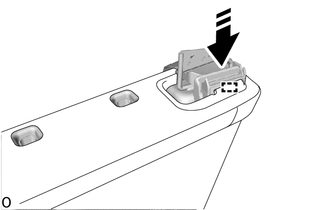

B536709C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


d.

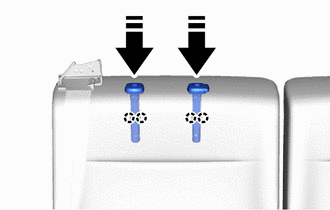

B540433C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


e.

w/ Seatback fastener.

i.
B540434

Close the 2 fasteners.


ii.

Insert the 2 fasteners.

B540435



f.
B540436

Insert the No. 1 seatback cover with pad RH under the rear seat shoulder belt hole cover RH.


g.

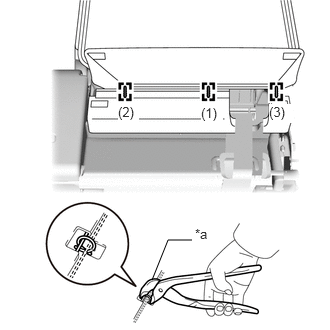

B540437C01
1.583,2.917 1.75,2.5 1.75,2.5 2,2.5 false 2.094,1.094 2.323,1.302 0.229,0.208 10 true (1) 2.802,1.083 3.052,1.281 0.25,0.198 10 true (3) 1.229,1.083 1.448,1.281 0.219,0.198 10 true (2) 2.031,2.354 2.25,2.552 0.219,0.198 10 true *a
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover with pad RH with the 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover with pad RH.



h.

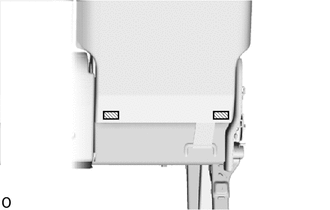

B536715C01
0,0 0,0 false
V100155

Fastening tape


Attach the fastening tape.


i.

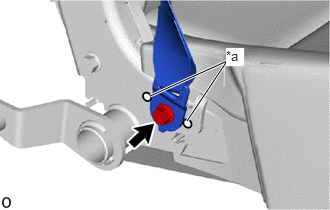

B536054C04
1.563,1 2.365,0.635 2.365,0.635 1.948,1.26 true 2.354,0.5 2.542,0.688 0.188,0.188 10 true *a
*a Protruding Part


Install the anchor of the rear center seat lap type belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear center seat lap type belt assembly to overlap the protruding part.



j.

Check that the ELR locks.

i.

With the rear center seat lap type belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.



Hide 73C73E 12.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73C73D 14.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72525N 22.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.
