SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·The procedure listed below is a representative example.
·Use the same procedure for all rows, unless otherwise specified.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY RH
72525R
2.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH
71833M
3.REMOVE RH SEAT REAR NO. 2 SEAT RECLINING COVER RH
71834M
4.REMOVE RH SEAT REAR NO. 2 SEAT RECLINING COVER LH
72848J
5.REMOVE NO. 1 SEAT ARMREST CAP (w/ Armrest)
72840J
6.REMOVE REAR SEAT ARMREST ASSEMBLY LH (w/ Armrest)
74690A
7.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY
71701A
8.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH
73C73D
9.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER RH
73C73E
10.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER RH
11.REMOVE SEATBACK COVER WITH PAD

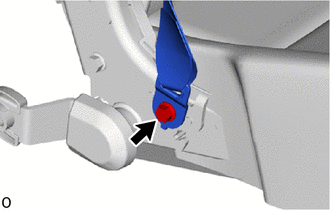

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly RH.
Remove the 2 hog rings.
Pull out the 2 fasteners.
Open the 2 fasteners.

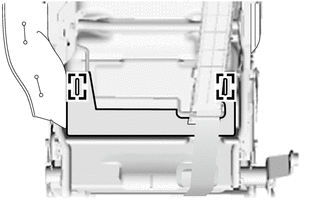

Detach the hook.
Detach the hook.
|
Remove in this Direction |

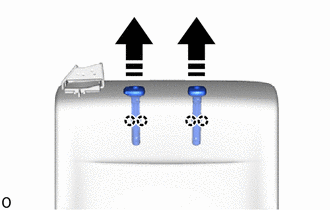

Detach the claw and remove the 2 front seat headrest supports as shown in the illustration.
|
|
Remove in this Direction |

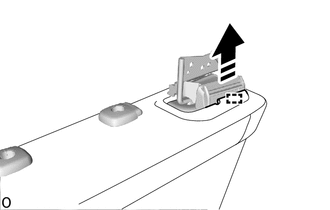

Detach the guide as shown in the illustration.
Detach the guide.
Pass the rear seat outer 3 point type belt assembly RH through the hole of the seatback cover with pad.
Remove the seatback cover with pad.
- NOTICE:
-
Be careful not to damage the seatback cover with pad.
73C73F
12.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER RH
73C73H
13.REMOVE REAR SEAT SHOULDER BELT HOLE COVER RH
73360
14.REMOVE REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH
Remove the 2 screws.
Detach the guide and remove the bezel.
Remove the bolt.
Detach the guide and remove the rear seat outer 3 point type belt assembly RH.
