SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Folding Type)  INSTALLATION

73390 1.INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (for 3 Point Type Rear Seat Belt)

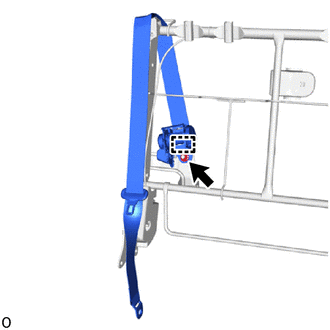

73390 2.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (for 3 Point Type Rear Seat Belt)

a.

Attach the guide.

b.

Install the rear seat 3 point type belt assembly LH with the nut.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

73375 3.INSTALL REAR SEAT SHOULDER BELT COVER LH (for 3 Point Type Rear Seat Belt)

4.INSTALL NO. 2 SEATBACK COVER WITH PAD (for 3 Point Type Rear Seat Belt)

72667D 5.INSTALL REAR SEATBACK UPPER LOCK BEZEL LH (for 3 Point Type Rear Seat Belt)

6.INSTALL REAR SEATBACK ASSEMBLY (for 3 Point Type Rear Seat Belt)

71834R 7.INSTALL REAR SEAT RECLINING COVER LH (for 3 Point Type Rear Seat Belt)

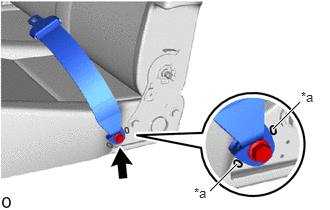

73330P 8.INSTALL SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY LH (for 2 Point Type Rear Seat Belt)

a.

2.844,1.344 3.125,1.063 true 2.188,1.99 2.469,1.708 true 2.021,1.927 2.333,2.125 0.313,0.198 10 false *a 3.135,0.927 3.354,1.292 0.219,0.365 10 false *a

*a	Protruding Part

Install the space up seat rear seat lap type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the space up seat rear seat lap type belt assembly LH to overlap the protruding part.

71834S 9.INSTALL REAR SEAT NO. 1 RECLINING COVER LH

72526L 10.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

71324P 11.INSTALL NO. 1 SEAT CUSHION RH (for 3 Point Type Rear Seat Belt, w/ Cushion)

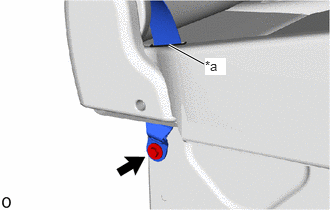

73390 12.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) (for 3 Point Type Rear Seat Belt)

a.

2.125,0.667 1.76,0.469 true 2.135,0.604 2.354,0.781 0.219,0.177 10 true *a

*a

Hole

Pass the seat anchor of the rear seat 3 point type belt assembly LH through the hole of the rear seat cushion assembly.

b.

Install the seat anchor of the rear seat 3 point type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

c.

Check that the ELR locks.

i.

With the rear seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

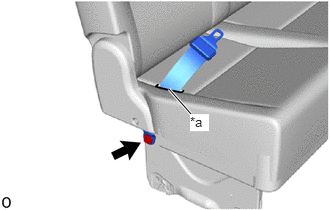

73330Q 13.INSTALL SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY RH (for 2 Point Type Rear Seat Belt)

a.

1.99,1.188 1.76,0.927 true 1.979,1.188 2.177,1.365 0.198,0.177 10 true *a

*a

Hole

Pass the space up seat rear seat lap type belt assembly RH to the hole of the rear seat cushion assembly.

b.

Install the space up seat rear seat lap type belt assembly RH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

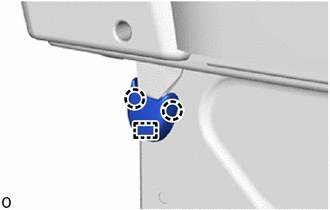

73233D 14.INSTALL OUTER LAP BELT ANCHOR COVER (w/ Seat Belt Anchor Cover)

a.

Attach the guide and claw and install the outer lap belt anchor cover.

15.INSTALL REAR SEAT ASSEMBLY LH
