SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Folding Type) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY LH
73233D
2.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Under Cover)
Detach the claw and guide and remove the outer lap belt anchor cover.
73330Q

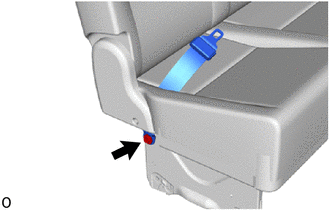

3.REMOVE SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY RH (for 2 Point Type Rear Seat Belt)
Remove the bolt and space up seat rear seat lap type belt assembly RH.
73390

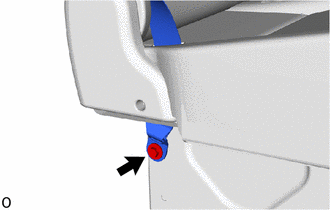

4.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) (for 3 Point Type Rear Seat Belt)
Remove the bolt and seat anchor of the rear seat 3 point type belt assembly LH.
71324P
5.REMOVE NO. 1 SEAT CUSHION RH (for 3 Point Type Rear Seat Belt, w/ Cushion)
72526L
6.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
71834S
7.REMOVE REAR SEAT NO. 1 RECLINING COVER LH
73330P
8.REMOVE SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY LH (for 2 Point Type Rear Seat Belt)
Remove the bolt and space up seat rear seat lap type belt assembly LH.
71834R
9.REMOVE REAR SEAT RECLINING COVER LH (for 3 Point Type Rear Seat Belt)
10.REMOVE REAR SEATBACK ASSEMBLY (for 3 Point Type Rear Seat Belt)
72667D
11.REMOVE REAR SEATBACK UPPER LOCK BEZEL LH (for 3 Point Type Rear Seat Belt)
12.REMOVE NO. 2 SEATBACK COVER WITH PAD (for 3 Point Type Rear Seat Belt)
73375
13.REMOVE REAR SEAT SHOULDER BELT COVER LH (for 3 Point Type Rear Seat Belt)
73390
14.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (for 3 Point Type Rear Seat Belt)
Remove the nut.
Detach the guide and remove the rear seat 3 point type belt assembly LH.
