7GR-FKS COOLING  WATER PUMP  REMOVAL

51406A 1.REMOVE NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

52618 2.REMOVE LOWER FRONT BUMPER ABSORBER

51405A 3.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

4.DRAIN ENGINE COOLANT

11209 5.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

53106B 6.REMOVE RADIATOR COVER SUB-ASSEMBLY

17751 7.REMOVE NO. 1 AIR CLEANER INLET

44360 8.DISCONNECT VANE PUMP OIL RESERVOIR ASSEMBLY

16470 9.REMOVE RADIATOR RESERVE TANK ASSEMBLY

16571C 10.REMOVE NO. 1 RADIATOR HOSE

16572D 11.REMOVE NO. 2 RADIATOR HOSE

16711 12.REMOVE FAN SHROUD

16295 13.DISCONNECT NO. 7 WATER BY-PASS HOSE

16267 14.DISCONNECT NO. 3 WATER BY-PASS HOSE

16281 15.DISCONNECT NO. 4 WATER BY-PASS HOSE

16031 16.REMOVE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT

16631D 17.REMOVE NO. 1 IDLER PULLEY BRACKET (w/o Air Conditioning System)

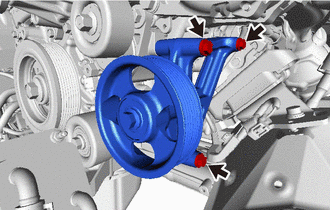

a.

Remove the 3 bolts and No. 1 idler pulley bracket.

88320 18.REMOVE COOLER COMPRESSOR ASSEMBLY (w/ Air Conditioning System)

16620 19.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

44310 20.DISCONNECT VANE PUMP ASSEMBLY

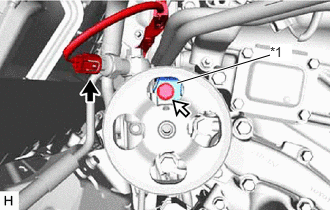

a.

1.844,0.865 2.813,0.573 true 2.813,0.458 3.042,0.635 0.229,0.177 10 true *1

*1	Wiring Harness Clamp Bracket
	Connector
	Bolt

Disconnect the connector.

b.

Remove the bolt and disconnect the wiring harness clamp bracket.

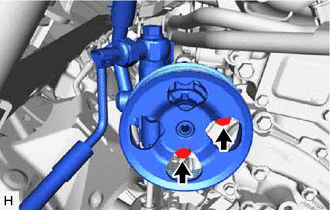

c.

Remove the 2 bolts and disconnect the vane pump assembly.

16604 21.REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

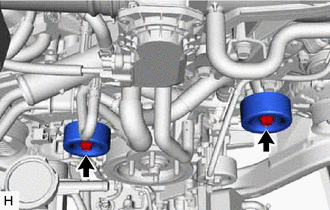

a.

Remove the 2 bolts and 2 No. 2 idler pulley sub-assemblies.

16100 22.REMOVE ENGINE WATER PUMP ASSEMBLY

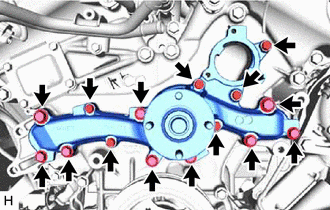

a.

Remove the 15 bolts, engine water pump assembly and water pump gasket.
