RM35X0E _V1 General _078672 MAINTENANCE _0386718 FRONT DISC BRAKE PAD A

MAINTENANCE  FRONT DISC BRAKE PAD  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 04945 1.INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTICE:
·

When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads.

·

Install the front disc brake pad wear indicator plates in the correct position and direction.

·

Install the front disc brake anti-squeal shims in the correct position and direction.



a.

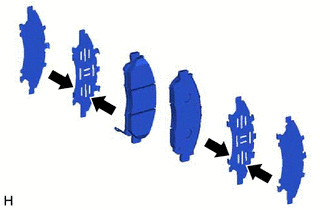

C412350
1.146,0.26 0.979,0.26 0.979,0.26 0.896,0.375 true 2.76,0.656 2.594,0.656 2.594,0.656 2.49,1.042 true 3.167,0.885 3.083,0.885 3.083,0.885 3.021,1.25 true 0.552,1.406 0.385,1.406 0.385,1.406 0.323,0.948 true 1.417,1.917 1.417,1.438 true 0.854,1.917 1.938,1.917 1.938,1.917 1.938,1.667 true 2.792,0.573 3.104,0.729 0.313,0.156 10 false *2 1.229,0.177 1.479,0.333 0.25,0.156 10 false *2 0.615,1.323 0.865,1.49 0.25,0.167 10 false *3 3.219,0.781 3.396,0.969 0.177,0.188 10 false *3 0.667,1.833 0.854,2.042 0.188,0.208 10 false *1
*1 Front Disc Brake Pad
*2 Front No. 1 Disc Brake Anti-squeal Shim
*3 Front No. 2 Disc Brake Anti-squeal Shim
V100135

Disc Brake Grease


Apply disc brake grease to both sides of each front No. 1 disc brake anti-squeal shim.


b.

Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.


Hide 2.INSTALL FRONT DISC BRAKE PAD

CAUTION:
C412346

·

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when installing the front disc brake pads.

·

After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.

·

The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.



a.

Push in the front disc brake piston.

NOTICE:
·

Make sure the brake fluid does not overflow from the reservoir.

·

Do not forcibly push in the front disc brake piston.




b.

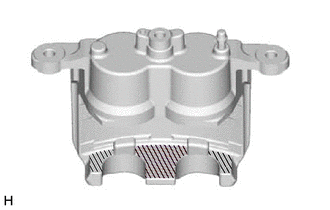

C412384C01
0,0 0,0 false
V100155

Disc Brake Grease


Apply disc brake grease to the specified position shown in the illustration.


c.
C412348

Install the 2 front disc brake pads and 2 anti-squeal springs to the front disc brake cylinder mounting.

NOTICE:
·

Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.

·

Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.




d.

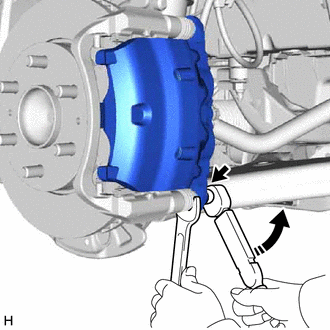

C412386
2.854,3.042 3.094,3.26 0.24,0.219 10 false *a 1.792,3.135 2.104,3.292 0.313,0.156 10 false *b
*a Turn
*b Hold


Hold the front disc brake cylinder slide pin (lower side) and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the bolt.

Torque:
72 N*m (734 kgf*cm, 53 ft.*lbf)


e.

Depress the brake pedal several times.
