7GR-FKS INTAKE / EXHAUST INTAKE AIR CONTROL VALVE ACTUATOR REMOVAL

PROCEDURE

Hide Display 85110 1.REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201902,999999,_59,_079320,_0385302,RM100000001GLKU,

Hide Display 47220D 2.DISCONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0131,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0131,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0131,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0131,

Hide Display 55738D 3.REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0132,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0132,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0132,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0132,

Hide Display 55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0044,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0044,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0044,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0044,

Hide Display 17335 5.REMOVE INTAKE AIR CONTROL VALVE ACTUATOR

a.

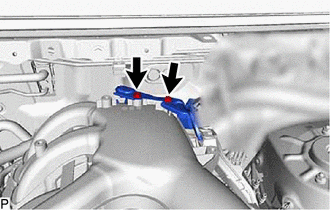

A436927

Remove the 2 bolts to disconnect the engine wire from the intake air surge tank assembly.

b.

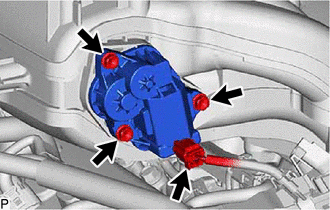

A437889

Disconnect the intake air control valve actuator connector from the intake air control valve actuator.

c.

Remove the 3 bolts and intake air control valve actuator from the intake air surge tank assembly.
