RM35X0E _58 Vehicle Interior _079317 POWER OUTLETS (INT) _0385439 POWER OUTLET SOCKET(for Front Side) A

POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Front Side)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

a.
B533055C01
0,0 0,0 false
V113147

Install in this Direction


except Separate Type:

i.

Attach the guide and claw to install the No. 1 power outlet socket cover as shown in the illustration.



b.

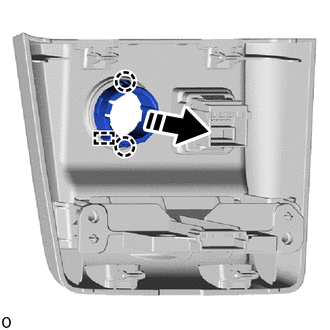

B533051C01
0,0 0,0 false
V113147

Install in this Direction


for Separate Type:

i.

Attach the guide and claw to install the No. 1 power outlet socket cover as shown in the illustration.



Hide 85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

a.

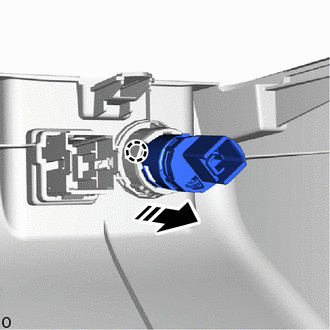

B533053C01
0,0 0,0 false
V113147

Install in this Direction


except Separate Type:

i.

Attach the claw and install the No. 1 power outlet socket assembly as shown in the illustration.



b.
B533049C01

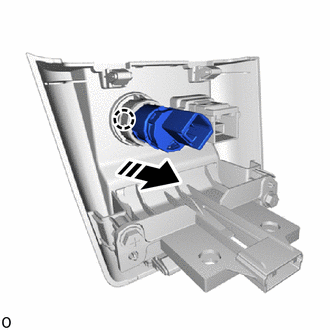

0,0 0,0 false
V113147

Install in this Direction


for Separate Type:

i.

Attach the claw and install the No. 1 power outlet socket assembly as shown in the illustration.



Hide 55524H 3.INSTALL SWITCH BASE HOLE COVER (for Separate Type)

a.
B533047

Connect each connector.


b.

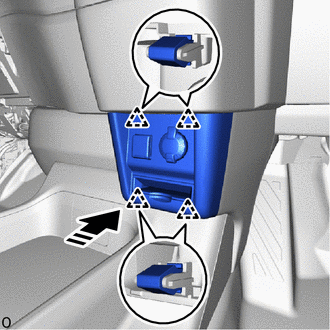

B533056C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the switch base hole cover in the direction indicated by the arrow shown in the illustration.
