RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385308 WASHER NOZZLE A

WIPER / WASHER WASHER NOZZLE INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

Hide Display 85035 1.INSTALL WASHER NOZZLE SUB-ASSEMBLY

Connect a new washer nozzle sub-assembly to the washer hose.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

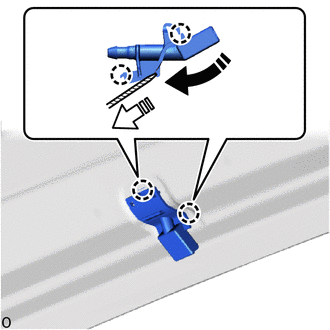

Attach the claw as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

Hide Display 55879C 2.INSTALL COWL VENT SEAL

Hide Display 53341B 3.INSTALL HOOD INSULATOR (w/ Hood Insulator)

Hide Display 85035 4.INSPECT WASHER NOZZLE SUB-ASSEMBLY

Hide Display 85035 5.ADJUST WASHER NOZZLE SUB-ASSEMBLY
