AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  AUTOMATIC TRANSMISSION SYSTEM(for 7GR-FKS)  Transmission Control Switch Circuit


DESCRIPTION

After moving the shift lever to S, it is possible to switch the shift range between "1" (S1 range) and "6" (S6 range) using the transmission control switch.

Moving the shift lever to "+" once raises the shift range by one, and moving the shift lever to "-" once lowers the shift range by one.

WIRING DIAGRAM

C318220
0.198,0.625 1.063,1.385 0.865,0.76 10 false from ECU-IG1 NO. 2 Fuse 1.719,2.646 3.854,3.198 2.135,0.552 10 false Transmission Control Switch (Shift Lock Control Unit Assembly) 1.719,2.49 2.031,2.688 0.313,0.198 10 false N61 2.073,0.49 2.385,0.688 0.313,0.198 10 false IG 2.063,1.854 2.375,2.042 0.313,0.188 10 false E 3.271,0.5 3.583,0.688 0.313,0.188 10 false S 3.031,1.177 3.646,1.375 0.615,0.198 10 false SFTU 3.031,1.854 3.646,2.052 0.615,0.198 10 false SFTD 5.521,0.5 5.833,0.688 0.313,0.188 10 false S 5.51,1.167 6.125,1.365 0.615,0.198 10 false SFTU 5.521,1.854 6.135,2.052 0.615,0.198 10 false SFTD 5.844,2.5 6.385,2.844 0.542,0.344 10 false N1 5.844,2.656 6.25,3.271 0.406,0.615 10 false ECM 1.854,0.49 2.01,0.688 0.156,0.198 10 false 4 1.865,1.854 2.177,2.052 0.313,0.198 10 false 2 3.5,1.854 3.813,2.052 0.313,0.198 10 false 1*1 3.5,1.177 3.813,1.375 0.313,0.198 10 false 3*1 3.479,0.531 3.792,0.729 0.313,0.198 10 false 5 5.25,0.49 5.563,0.688 0.313,0.198 10 false 32 5.323,1.167 5.635,1.365 0.313,0.198 10 false 8 5.323,1.854 5.635,2.052 0.313,0.198 10 false 7 6.25,1.01 6.708,1.208 0.458,0.198 10 false 12 V 6.25,1.688 6.708,1.885 0.458,0.198 10 false 12 V 3.5,1.667 3.958,1.865 0.458,0.198 10 false 3*2 3.5,1.01 3.958,1.208 0.458,0.198 10 false 1*2 0.188,3.042 1.875,3.24 1.688,0.198 10 false *1: for LHD 0.188,3.417 1.875,3.615 1.688,0.198 10 false *2: for RHD

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.


PROCEDURE

1.READ VALUE USING GTS (Shift SW Status (S Range))
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / Shift SW Status (S Range).


e.

Read the Data List according to the display on the GTS.

Powertrain > Transmission > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Shift SW Status (S Range) Sport mode select switch status ON or OFF
·

ON: Shift lever in S, "+" or "-"

·

OFF: Shift lever not in S, "+" or "-"


-
Powertrain > Transmission > Data List
Tester Display
Shift SW Status (S Range)
50003 373 27

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

2.READ VALUE USING GTS (SPORT SHIFT UP SW AND SPORT SHIFT DOWN SW)

B

6.INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)
2.READ VALUE USING GTS (SPORT SHIFT UP SW AND SPORT SHIFT DOWN SW)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Sports Shift Up SW, Sports Shift Down SW.


e.

Read the Data List according to the display on the GTS.

Powertrain > Engine > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Sport Shift Up SW Sport shift up switch status ON or OFF
·

ON: Shift lever held in "+" (up-shift)

·

OFF: Shift lever not held in "+" (up-shift)


-
Sport Shift Down SW Sport shift down switch status ON or OFF
·

ON: Shift lever held in "-" (down-shift)

·

OFF: Shift lever not held in "-" (down-shift)


-
Powertrain > Engine > Data List
Tester Display
Sport Shift Up SW
Sport Shift Down SW
50003 372 26,25

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PROBLEM SYMPTOMS TABLE


B

3.INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)
3.INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)
a.
C239095
1.292,1.729 1.646,1.313 true 2.698,1.729 2.313,1.302 true 1.979,1.729 1.958,1.333 true 0.198,0.167 0.51,0.365 0.313,0.198 10 false *a 1.969,1.781 2.125,1.979 0.156,0.198 10 false E 2.49,1.74 3.104,1.938 0.615,0.198 10 false SFTD*A 1.042,1.729 1.656,1.927 0.615,0.198 10 false SFTU*A 1.042,1.885 1.656,2.083 0.615,0.198 10 false SFTD*B 2.49,1.896 3.104,2.094 0.615,0.198 10 false SFTU*B
*A for LHD
*B for RHD
*a Component without harness connected
(Transmission Control Switch (Shift Lock Control Unit Assembly))


Disconnect the transmission control switch connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for LHD):
Tester Connection Condition Specified Condition
3 (SFTU) - 2 (E) Shift lever held in "+" Below 1 Ω
3 (SFTU) - 2 (E) Shift lever in S 10 kΩ or higher
1 (SFTD) - 2 (E) Shift lever held in "-" Below 1 Ω
1 (SFTD) - 2 (E) Shift lever in S 10 kΩ or higher


Standard Resistance (for RHD):
Tester Connection Condition Specified Condition
1 (SFTU) - 2 (E) Shift lever held in "+" Below 1 Ω
1 (SFTU) - 2 (E) Shift lever in S 10 kΩ or higher
3 (SFTD) - 2 (E) Shift lever held in "-" Below 1 Ω
3 (SFTD) - 2 (E) Shift lever in S 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)

NG

REPLACE TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL


4.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)
a.
C267936
0.229,0.979 0.583,1.24 0.354,0.26 0.927,1.896 1.5,1.406 true 0.813,1.854 1.125,2.052 0.313,0.198 10 false E 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 0.302,1.031 0.76,1.229 0.458,0.198 10 false N61
*a Front view of wire harness connector
(to Transmission Control Switch (Shift Lock Control Unit Assembly))


Disconnect the transmission control switch connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N61-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
a.

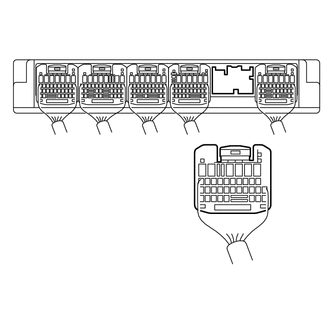

C318001
2.229,0.344 2.604,0.531 0.375,0.188 2.833,2.917 2.688,1.885 true 2,2.917 2.615,1.896 true 0.104,0.104 0.417,0.26 0.313,0.156 10 false *a 1.667,2.969 2.896,3.167 1.229,0.198 10 false 8 (SFTU) 2.583,2.969 3.219,3.167 0.635,0.198 10 false 7 (SFTD) 2.344,0.365 2.656,0.563 0.313,0.198 10 false N1
*a Rear view of wire harness connector
(to ECM)


Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N1-8 (SFTU) - Body ground Shift lever held in "+" Below 1 Ω
N1-8 (SFTU) - Body ground Shift lever in S 10 kΩ or higher
N1-7 (SFTD) - Body ground Shift lever held in "-" Below 1 Ω
N1-7 (SFTD) - Body ground Shift lever in S 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PROBLEM SYMPTOMS TABLE


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)
a.
C239095C86
0.771,1.729 1.125,1.313 true 1.906,1.75 1.521,1.323 true 0.198,0.167 0.51,0.365 0.313,0.198 10 *a 1.906,1.802 2.375,2 0.469,0.198 10 IG 0.646,1.771 1.021,1.979 0.375,0.208 10 S
*a Component without harness connected
(Transmission Control Switch (Shift Lock Control Unit Assembly))


Disconnect the transmission control switch connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (IG) - 5 (S) Shift lever in S Below 1 Ω
4 (IG) - 5 (S) Shift lever not in S 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (BATTERY - TRANSMISSION CONTROL SWITCH)

NG

REPLACE TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL


7.CHECK HARNESS AND CONNECTOR (BATTERY - TRANSMISSION CONTROL SWITCH)
a.
C267936C84
0.229,0.979 0.583,1.24 0.354,0.26 2.646,1.875 2,1.406 true 2.719,1.802 3.031,2 0.313,0.198 10 false IG 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 0.302,1.031 0.76,1.229 0.458,0.198 10 false N61
*a Front view of wire harness connector
(to Transmission Control Switch (Shift Lock Control Unit Assembly))


Disconnect the transmission control switch connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N61-4 (IG) - Body ground Ignition switch to ON 11 to 14 V
N61-4 (IG) - Body ground Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

8.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
a.

Disconnect the transmission control switch connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N61-5 (S) - N1-32 (S) Always Below 1 Ω
N61-5 (S) - Body ground Always 10 kΩ or higher
N1-32 (S) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PROBLEM SYMPTOMS TABLE


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
