RM35X0E _52 Drivetrain _079259 AXLE AND DIFFERENTIAL _0385114 STEERING KNUCKLE A

AXLE AND DIFFERENTIAL  STEERING KNUCKLE  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 43212 1.INSTALL STEERING KNUCKLE LH

a.

Secure the steering knuckle LH between aluminum plates in a vise.

NOTICE:

Do not overtighten the vise.



b.

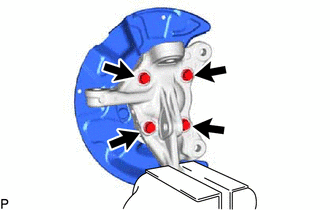

C409465

Install the front axle hub sub-assembly LH and front disc brake dust cover to the steering knuckle LH with the 4 bolts.

Torque:
95 N*m (969 kgf*cm, 70 ft.*lbf)

NOTICE:
·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
