RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0384985 OUTER REAR VIEW MIRROR COVER A

MIRROR (EXT)  OUTER REAR VIEW MIRROR COVER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87945 1.INSTALL OUTER MIRROR COVER LH

a.

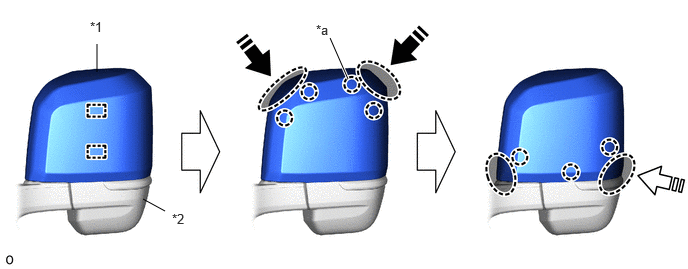

Align the guide of the outer mirror cover LH with the body hole and set the outer mirror cover LH into place as shown in the illustration.

B545109C02
1.01,0.75 1.01,0.458 false 1.49,2.073 1.719,2.198 false 3.625,0.823 3.438,0.396 true 0.938,0.198 1.25,0.396 0.313,0.198 10 false *1 1.792,2.198 2.104,2.396 0.313,0.198 10 false *2 3.292,0.229 3.479,0.448 0.188,0.219 10 false *a
*1 Outer Mirror Cover LH *2 Body
*a Claw A - -
V113147

Push in this Direction (1)
V113148

Push in this Direction (2)
V113146

Place Hand Here - -



b.

Align the outer mirror cover LH with the outer circumference connection of the body and place your hand at the top of the outer mirror cover LH. Then, while pressing the outer mirror cover LH in the direction shown by the arrow (1) (inner side), press toward the body and attach the claw at the top of the outer mirror cover LH as shown in the illustration.

HINT:

There may be no Claw A for *a in the illustration.



c.

Place your hand at the bottom of the outer mirror cover LH, and then while pressing the outer mirror cover LH in the direction shown by the arrow (2) (inner side), press toward the body and attach the claw at the bottom.

NOTICE:

After installing, make sure there is no clearance between the outer mirror cover LH and the outer circumference connection of the body.
