RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0387095 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87961 1.INSTALL OUTER MIRROR LH

a.

w/ Blind Spot Monitor System:

i.

Connect the blind spot monitor indicator connector.


ii.

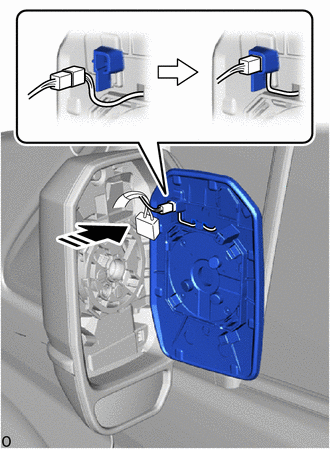

B545729C01
0,0 0,0 false
V113147

Install in this Direction


Install the blind spot monitor indicator connector to the outer mirror LH.



b.

w/ Mirror Heater:

i.

Connect the mirror heater connector.



c.

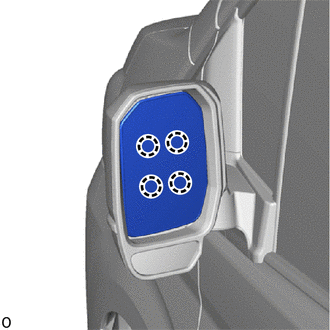

B538518

Attach the claw to install the outer mirror LH.

NOTICE:

Do not forcibly press on the outer mirror LH as the mirror surface may break.
