MIRROR (EXT)  OUTER REAR VIEW MIRROR COVER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87945 2.REMOVE OUTER MIRROR COVER LH

a.

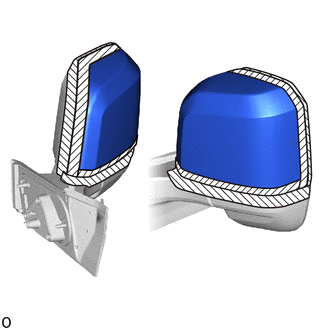

B542166C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape at the position shown in the illustration.


b.
E548395C01

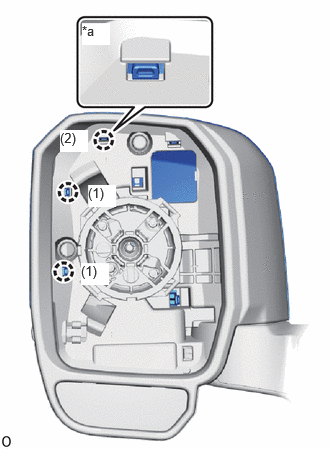

0.844,2.74 1.135,2.969 0.292,0.229 10 true (1) 0.917,1.927 1.208,2.156 0.292,0.229 10 true (1) 0.625,1.354 0.917,1.583 0.292,0.229 10 true (2) 0.854,0.24 1.146,0.469 0.292,0.229 10 true *a
*a Claw A


Using a screwdriver, press the claw (1) toward the front of the outer rear view mirror LH and detach the claw.

HINT:

Tape the screwdriver tip before use.



c.

Using a screwdriver, press the claw (2) toward the front of the outer rear view mirror LH and detach the claw.

HINT:

Tape the screwdriver tip before use.


HINT:
·

Tape the screwdriver tip before use.

·

There may be no Claw A for *a in the illustration.




d.
B538526C01
0,0 0,0 false
V113147

Remove in this Direction
V113146

Place Hand Here


Place your hands into the gap created during the previous procedure, pull toward the front of the outer rear view mirror LH, detach the claw, guide and remove the outer mirror cover LH.
