RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0387095 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87961 1.REMOVE OUTER MIRROR LH

a.

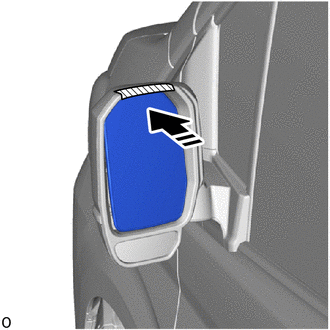

B545833C01
0,0 0,0 false
V113147C55
0,0 0,0 false

Push in this Direction
V100155

Protective Tape


Push the upper part of the outer mirror LH surface and tilt it.


b.

Apply protective tape to the areas shown in the illustration.


c.
B545724C01
0,0 0,0 false
V113147C55
0,0 0,0 false

Push in this Direction
V100155

Protective Tape


Push the lower part of the outer mirror LH surface and tilt it.


d.

Apply protective tape to the areas shown in the illustration.


e.

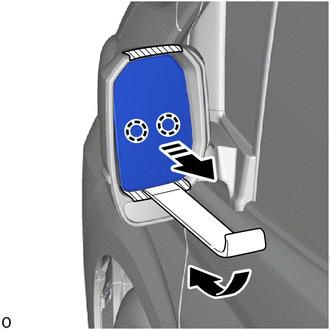

B545726C01
0,0 0,0 false
V113147

Remove in this Direction


Using a moulding remover D, detach the claw on the lower part of the outer mirror as shown in the illustration.


f.

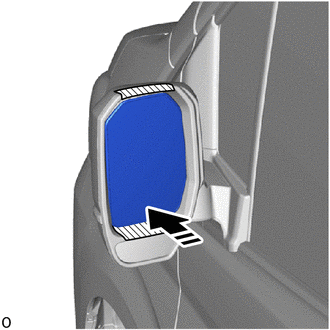

B545724

Push the lower part of the outer mirror LH surface and tilt it.


g.

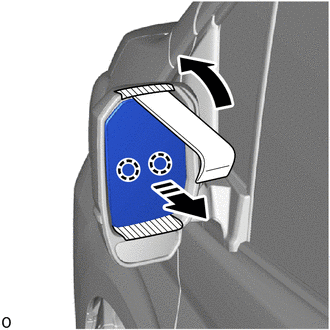

B545727C01
0,0 0,0 false
V113147

Remove in this Direction


Using a moulding remover D, detach the claw on the upper part of the outer mirror LH as shown in the illustration.


h.

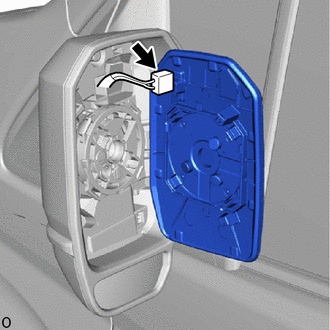

B540397

w/ Mirror Heater:

i.

Disconnect the mirror heater connector.

NOTICE:
·

Do not raise the claw higher than is necessary as it will damage the claw of the terminal.

·

If the claw of the connector is damaged, replace the outer mirror LH with a new one.

·

If there is damage to the wire harness or an open circuit has occurred, replace the outer rear view mirror assembly LH with a new one.





i.

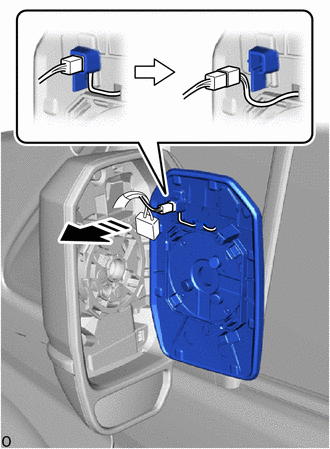

B545728C01
0,0 0,0 false
V113147

Remove in this Direction


w/ Blind Spot Monitor System:

i.

Remove the blind spot monitor indicator connector from the outer mirror LH as shown in the illustration.


ii.

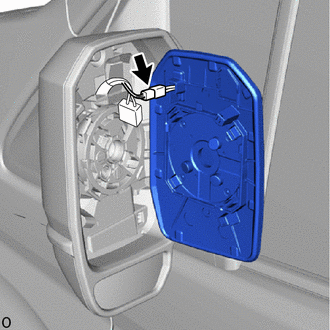

B540399

Disconnect the blind spot monitor indicator connector.
