HEATING / AIR CONDITIONING  CONDENSER  DISASSEMBLY


PROCEDURE

Hide 88474 1.REMOVE COOLER DRYER

a.
E416483

Remove the 2 bolts and bracket.


b.
E415305C01

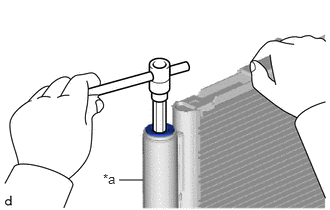

1.24,1.875 1.49,1.875 false 1.073,1.781 1.385,1.979 0.313,0.198 10 false *a
*a Modulator


Using a 14 mm hexagon socket wrench, remove the cap from the modulator.


c.
E415306C01

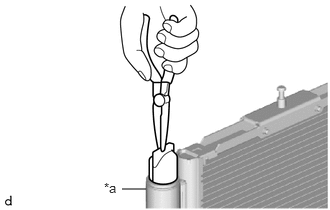

1.271,1.969 1.521,1.969 false 1.083,1.875 1.396,2.073 0.313,0.198 10 false *a
*a Modulator


Using pliers, remove the cooler dryer from the modulator.
