7GR-FKS EMISSION CONTROL AIR INJECTION DRIVER(w/ Secondary Air Injection System) REMOVAL

PROCEDURE

Hide Display 85110 1.REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201902,999999,_59,_079320,_0385302,RM100000001GLKU,

Hide Display 47220D 2.DISCONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0131,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0131,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0131,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0131,

Hide Display 55738D 3.REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0132,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0132,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0132,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0132,

Hide Display 55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0044,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0044,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0044,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0044,

Hide Display 89581A 5.REMOVE AIR INJECTION CONTROL DRIVER

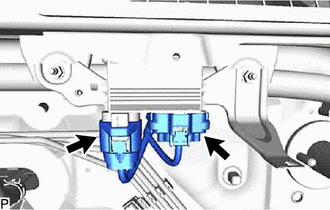

a.

A437974

Disconnect the 2 air injection control driver connectors.

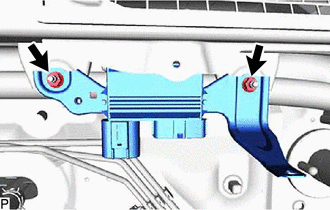

b.

A437975

Remove the 2 nuts and air injection control driver.

Hide Display 89879 6.REMOVE INJECTOR DRIVER BRACKET

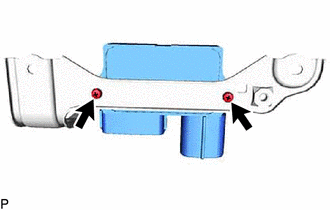

a.

A437976

Remove the 2 screws and injector driver bracket.
