7GR-FKS ENGINE CONTROL  SFI SYSTEM  P055011  Power Steering Pressure Sensor/Switch Circuit Short to Ground


DESCRIPTION

The power steering oil pressure switch is turned on when a power steering wheel load is generated by turning the steering wheel. The ECM regulates the engine idling speed according to the voltage output of the sensor.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P055011 Power Steering Pressure Sensor/Switch Circuit Short to Ground Power steering oil pressure switch voltage below 0.28 V for 3 seconds while engine running (1 trip detection logic).
·

Open or short in power steering oil pressure switch circuit

·

Power steering oil pressure switch

·

ECM


Comes on DTC stored SAE Code: P0552

MONITOR DESCRIPTION

The ECM monitors the sensor voltage and uses this value to regulate the engine idling speed. When the sensor output voltage deviates from the normal operating range, the ECM determines that there is a malfunction in the power steering oil pressure switch and stores a DTC.

MONITOR STRATEGY

Required Sensors/Components Power steering oil pressure switch
Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Start the engine.

7.

Idle the engine for 5 seconds.

8.

Enter the following menus: Powertrain / Engine / Trouble Codes.

9.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



10.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11.

Input the DTC: P055011.

12.

Check the DTC judgment result.


GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

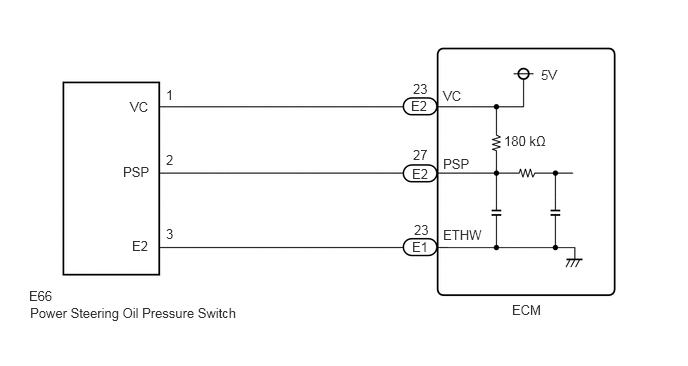

WIRING DIAGRAM

A357737E12
1.354,1.031 1.667,1.229 0.313,0.198 10 false VC 1.281,1.708 1.594,1.906 0.313,0.198 10 false PSP 1.375,2.479 1.688,2.677 0.313,0.198 10 false E2 1.729,0.906 2.042,1.104 0.313,0.198 10 false 1 1.729,1.583 2.042,1.781 0.313,0.198 10 false 2 1.729,2.354 2.042,2.552 0.313,0.198 10 false 3 4.302,0.844 4.615,1.042 0.313,0.198 10 false 23 4.313,2.313 4.625,2.51 0.313,0.198 10 false 23 4.302,1.531 4.615,1.729 0.313,0.198 10 false 27 4.615,0.917 4.927,1.115 0.313,0.198 10 false VC 4.615,1.625 4.927,1.823 0.313,0.198 10 false PSP 4.615,2.365 5.125,2.552 0.51,0.188 10 false ETHW 5.635,0.698 5.948,0.896 0.313,0.198 10 false 5V 5.333,3.146 5.844,3.333 0.51,0.188 10 false ECM 0.302,3 0.615,3.198 0.313,0.198 10 false E66 0.313,3.177 2.781,3.417 2.469,0.24 10 false Power Steering Oil Pressure Switch 5.25,1.385 6.031,1.625 0.781,0.24 10 false 180 kΩ 4.281,1.021 4.594,1.219 0.313,0.198 10 false E2 4.292,1.729 4.604,1.927 0.313,0.198 10 false E2 4.292,2.49 4.604,2.688 0.313,0.198 10 false E1

CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the GTS. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR
A439424C03

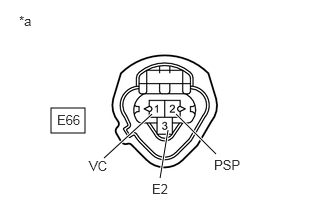

0.531,1.125 0.885,1.385 0.354,0.26 1.083,1.646 1.583,1.188 true 1.667,1.854 1.75,1.354 true 2.25,1.604 1.833,1.188 true 0.198,0.135 0.51,0.333 0.313,0.198 10 false *a 0.594,1.167 0.958,1.385 0.365,0.219 10 false E66 0.927,1.646 1.24,1.844 0.313,0.198 10 false VC 1.583,1.885 1.896,2.083 0.313,0.198 10 false E2 2.229,1.635 2.542,1.833 0.313,0.198 10 false PSP
*a Front view of wire harness connector
(to Power Steering Oil Pressure Switch)


HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.


a.

Disconnect the power steering oil pressure switch connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E66-1 (VC) - E66-3 (E2) Ignition switch ON 4.5 to 5.5 V
E66-2 (PSP) - E66-3 (E2) Ignition switch ON 3.0 to 5.5 V



d.

Turn the ignition switch off and wait for at least 30 seconds.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E66-1 (VC) - E66-2 (PSP) Ignition switch off 171 to 189 kΩ



Result:
Proceed to
OK
NG



OK

NG

2.CHECK HARNESS AND CONNECTOR (POWER STEERING OIL PRESSURE SWITCH - ECM)
2.CHECK HARNESS AND CONNECTOR (POWER STEERING OIL PRESSURE SWITCH - ECM)
a.

Disconnect the power steering oil pressure switch connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E66-1 (VC) - E2-23 (VC) Always Below 1 Ω
E66-2 (PSP) or E2-27 (PSP) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
