CRUISE CONTROL  FRONT CAMERA SYSTEM  C1AAE00  Front Recognition Camera Heater Malfunction


DESCRIPTION

The forward recognition camera controls the flow of current to the forward recognition with heater hood sub-assembly.

If the forward recognition camera detects a malfunction in the forward recognition with heater hood sub-assembly circuit, it will store this DTC.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1AAE00 Front Recognition Camera Heater Malfunction
Either of the following conditions is met after 10 seconds have elapsed since the ignition switch was turned ON:
·

Short to +B detected in the forward recognition with heater hood sub-assembly circuit for 1 second or more cumulatively

·

Open or short to ground detected in the forward recognition with heater hood sub-assembly circuit for 5 seconds or more


·

Forward recognition with heater hood sub-assembly

·

Forward recognition camera

·

Wire harness or connector

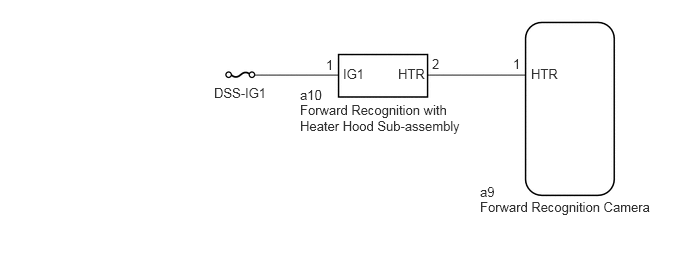

WIRING DIAGRAM

C414190E01
2.229,0.885 3.542,1.094 1.313,0.208 10 false DSS-IG1 3.125,1.063 4.917,1.458 1.792,0.396 10 false Forward Recognition with Heater Hood Sub-assembly 3.573,0.688 4.031,0.885 0.458,0.198 10 false IG1 4.146,0.688 4.604,0.885 0.458,0.198 10 false HTR 3.396,0.594 3.552,0.792 0.156,0.198 10 false 1 4.5,0.583 4.656,0.781 0.156,0.198 10 false 2 5.344,0.583 5.5,0.781 0.156,0.198 10 false 1 5.531,0.688 5.99,0.885 0.458,0.198 10 false HTR 3.125,0.906 4.042,1.104 0.917,0.198 10 false a10 5,1.917 5.458,2.115 0.458,0.198 10 false a9 5,2.073 6.865,2.302 1.865,0.229 10 false Forward Recognition Camera

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle. As a result, a DTC may be stored.

·

If the forward recognition camera has been replaced with a new one, be sure to perform forward recognition camera adjustment.

HINT:

Forward recognition camera adjustment can be performed by using either One Time Recognition or Sequential Recognition.

One Time Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>ADJUSTMENT (ONE TIME RECOGNITION)

Sequential Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>ADJUSTMENT (SEQUENTIAL RECOGNITION)




PROCEDURE

1.CHECK FOR DTCs
a.

Clear the DTCs.

Chassis > Front Recognition Camera > Clear DTCs
50002 430

b.

Make sure that the DTC detection conditions are met.

HINT:

If the detection conditions are not met, the system cannot detect the malfunction.



c.

Check for DTCs.

Chassis > Front Recognition Camera > Trouble Codes
50001 430

Result:
Result Proceed to
DTC C1AAE00 is not output A
DTC C1AAE00 is output B



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

2.INSPECT FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY
2.INSPECT FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY
a.

Turn the ignition switch off.


b.
A401973C35
1.688,1.854 1.823,1.26 true 2.188,1.854 2.042,1.271 true 0.219,0.208 0.531,0.365 0.313,0.156 10 false *a 1.563,1.885 2.021,2.083 0.458,0.198 10 false HTR 2.135,1.885 2.594,2.083 0.458,0.198 10 false IG1
*a Component without harness connected
(Forward Recognition with Heater Hood Sub-assembly)


Disconnect the a10 forward recognition with heater hood sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (IG1) - 2 (HTR) Ignition switch off 28.5 to 31.5 Ω



d.

Connect the a10 forward recognition with heater hood sub-assembly connector.


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)

NG

REPLACE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

Click hereEngine / Hybrid System>CRUISE CONTROL>CAMERA HEATER>REMOVAL


3.CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)
a.
A401974C56
1.552,0.208 1.938,0.448 0.385,0.24 1.125,1.125 1.552,1.219 true 0.198,0.167 0.51,0.323 0.313,0.156 10 false *a 1.625,0.25 2.083,0.448 0.458,0.198 10 false a10 0.875,1.042 1.333,1.24 0.458,0.198 10 false IG1
*a Front view of wire harness connector
(to Forward Recognition with Heater Hood Sub-assembly)


Disconnect the a10 forward recognition with heater hood sub-assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
a10-1 (IG1) - Body ground Ignition switch ON 8 to 16 V
Ignition switch off Below 1.5 V



c.

Connect the a10 forward recognition with heater hood sub-assembly connector.


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

4.CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA)
a.

Disconnect the a10 forward recognition with heater hood sub-assembly connector.


b.

Disconnect the a9 forward recognition camera connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
a10-2 (HTR) - a9-1 (HTR) Always Below 1 Ω
a10-2 (HTR) or a9-1 (HTR) - Body ground Always 10 kΩ or higher



d.

Connect the a9 forward recognition camera connector.


e.

Connect the a10 forward recognition with heater hood sub-assembly connector.


Result:
Proceed to
OK
NG



OK

REPLACE FORWARD RECOGNITION CAMERA

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA)
