AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  TRANSMISSION CONTROL CABLE  ADJUSTMENT

Fully apply the parking brake and chock a wheel.

CAUTION:

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

1.125,0.729 1.302,0.938 0.177,0.208 10 false -

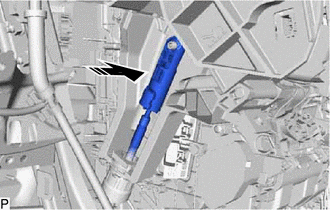

Disconnect in this Direction

Disconnect the end of the transmission control cable assembly from the transmission floor shift assembly.

2.271,2.573 2.615,2.573 false 1.948,1.75 2.083,1.531 2.083,1.531 2.188,1.531 false 1.594,0.958 1.781,1.135 0.188,0.177 10 false *c 1.792,1.344 1.979,1.521 0.188,0.177 10 false *c 2.438,0.781 2.625,0.958 0.188,0.177 10 false *d 2.25,1.458 2.51,1.656 0.26,0.198 10 false *a 2.229,2.313 2.417,2.49 0.188,0.177 10 false *d 2.656,2.49 2.958,2.729 0.302,0.24 10 false *b

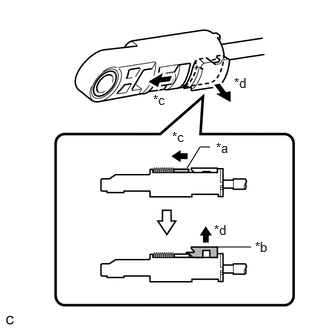

*a	Slider
*b	Lock Piece
*c	Slide
*d	Pull

Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

1.229,0.656 1.385,0.854 0.156,0.198 10 false -

Connect in this Direction

Connect the end of the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:

·

The shift lever should be in N.

·

Make sure that the lock piece is pulled up.

·

Push on the end of the cable all the way to the base of the transmission floor shift assembly pin.

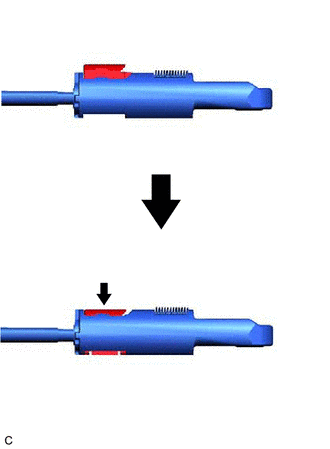

Push the lock piece into the adjuster case.

NOTICE:

·

Check that the park/neutral position switch assembly and shift lever are in neutral.

·

Securely push in the lock piece until it locks.
