RM35X0E _53 Suspension _078877 REAR SUSPENSION _0382540 REAR LEAF SPRING A

REAR SUSPENSION  REAR LEAF SPRING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48341B 1.INSTALL REAR NO. 1 SPRING BUMPER

a.

Install the rear No. 1 spring bumper to the vehicle body with the 2 bolts.

Torque:
32 N*m (326 kgf*cm, 24 ft.*lbf)


Hide 48802E 2.INSTALL REAR STABILIZER BAR SPACER

a.

Install the rear stabilizer bar spacer to new spring shackle bush.


Hide 3.INSTALL SPRING SHACKLE BUSH

a.

Install 2 new spring shackle bushes to the vehicle body.


Hide 48442 4.TEMPORARILY INSTALL NO. 2 SPRING SHACKLE

a.

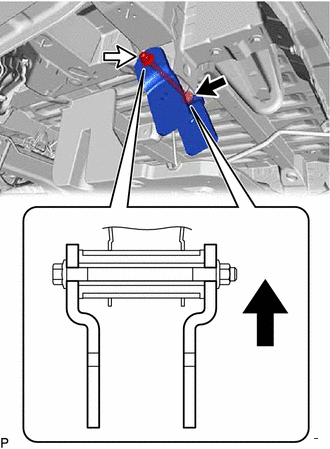

C409656C01
3.271,4.469 3.427,4.667 0.156,0.198 10 false -
V100135

Upper Side of the Vehicle


Temporarily install the 2 No. 2 spring shackles to the vehicle body with the bolt and nut.

NOTICE:
·

Move the spare wheel carrier assembly to a position where it does not contact the bolt. (for LH Side)

·

Insert the bolt from the inside of the vehicle.



HINT:

After stabilizing the suspension, tighten the nut.



Hide 48220 5.TEMPORARILY INSTALL REAR LEAF SPRING ASSEMBLY

a.

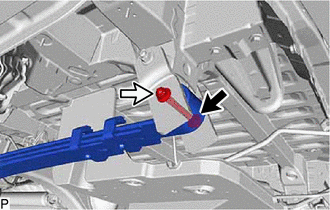

C412737

Temporarily install the rear leaf spring assembly to the rear side with the bolt and nut.

NOTICE:
·

Move the spare wheel carrier assembly to a position where it does not contact the bolt. (for LH Side)

·

Insert the bolt from the inside of the vehicle.



HINT:

After stabilizing the suspension, tighten the nut.



b.

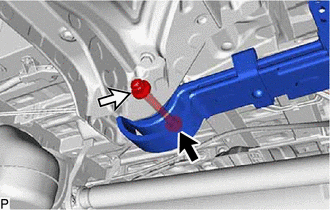

C409654

Temporarily install the rear leaf spring assembly to the front side with the nut, washer and bolt.

NOTICE:

Insert the bolt from the inside of the vehicle.


HINT:

After stabilizing the suspension, tighten the nut.



Hide 48047A 6.TEMPORARILY INSTALL REAR SPRING U BOLT

a.

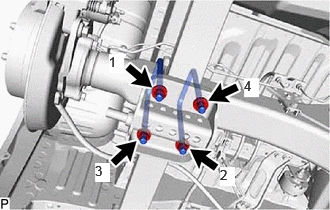

C409653N01
1.135,0.563 1.292,0.76 0.156,0.198 10 true 1 2.292,1.74 2.448,1.938 0.156,0.198 10 true 2 0.99,1.698 1.146,1.896 0.156,0.198 10 true 3 2.542,0.813 2.698,1.01 0.156,0.198 10 true 4

Temporarily install the rear spring U bolt seat with 2 new rear spring U bolts, 4 washers and 4 nuts.

NOTICE:

Tighten the nuts in the order shown in the illustration.



Hide 46430 8.CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY (for RH Side)

a.

Connect the No. 2 parking brake cable assembly with the bolt.

Torque:
14 N*m (143 kgf*cm, 10 ft.*lbf)


Hide 48442 10.TIGHTEN NO. 2 SPRING SHACKLE

a.

Tighten the nut.

Torque:
110 N*m (1122 kgf*cm, 81 ft.*lbf)


Hide 48220 11.TIGHTEN REAR LEAF SPRING ASSEMBLY

a.

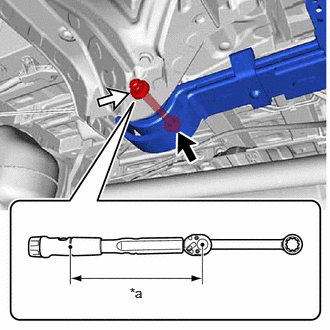

C413776C01
1.354,2.969 1.667,3.125 0.313,0.156 10 false *a
*a Torque Wrench Fulcrum Length


for Front Side:

i.

Using a ball joint lock nut wrench, tighten the nut.

Torque:
Specified tightening torque : 200 N*m (2039 kgf*cm, 148 ft.*lbf)

HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 600 mm (23.622 in.)):

160 N*m (1632 kgf*cm, 118 ft.*lbf)





b.

for Rear Side:

i.

Tighten the nut.

Torque:
110 N*m (1122 kgf*cm, 81 ft.*lbf)



Hide 48047A 12.TIGHTEN REAR SPRING U BOLT

a.
C409653N01
1.135,0.563 1.292,0.76 0.156,0.198 10 true 1 2.292,1.74 2.448,1.938 0.156,0.198 10 true 2 0.99,1.698 1.146,1.896 0.156,0.198 10 true 3 2.542,0.813 2.698,1.01 0.156,0.198 10 true 4

Tighten the 4 nuts.

Torque:
115 N*m (1173 kgf*cm, 85 ft.*lbf)

NOTICE:
·

Tighten the nuts in the order shown in the illustration.

·

The amount of tightening for each of the 4 nuts must be the same.




Hide 13.INSTALL SPARE TIRE (for LH Side)
