RM35X0E _53 Suspension _078877 REAR SUSPENSION _0382539 REAR SHOCK ABSORBER(except Wagon) A

REAR SUSPENSION  REAR SHOCK ABSORBER(except Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48540 1.TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY

a.

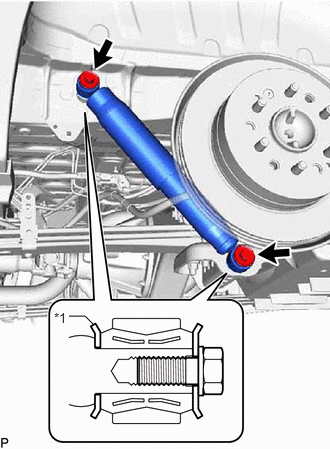

C409650C01
0.719,3.292 0.885,3.292 0.885,3.292 0.969,3.375 false 0.563,3.229 0.979,3.563 0.417,0.333 10 false *1
*1 Rear Shock Absorber Cushion Washer


Install the 2 rear shock absorber cushion washers to the spring U bolt seat and vehicle body.

NOTICE:

Make sure to install the rear shock absorber cushion washer in the correct direction.



b.

Install 4 new rear shock absorber bushes to the rear shock absorber assembly.


c.

Install the rear shock absorber assembly and 4 rear shock absorber bushes to the spring U bolt seat and vehicle body.


d.

Temporarily install the 2 bolts.


Hide 3.STABILIZE SUSPENSION

a.

Lower the vehicle.


b.

Bounce the vehicle up and down several times to stabilize the suspension.


Hide 48540 4.INSTALL REAR SHOCK ABSORBER ASSEMBLY

a.

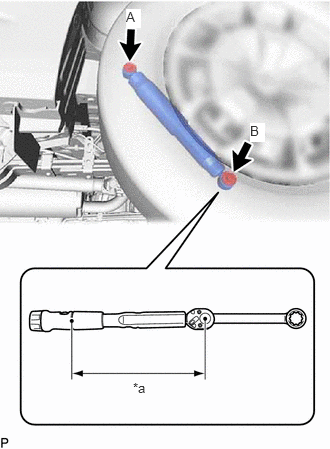

C413775C01
1.385,3.958 1.698,4.115 0.313,0.156 10 false *a 1.313,0.094 1.469,0.292 0.156,0.198 10 true A 2.604,1.281 2.76,1.479 0.156,0.198 10 true B
*a Torque Wrench Fulcrum Length


Install the rear shock absorber assembly with the bolt (A).

Torque:
68 N*m (693 kgf*cm, 50 ft.*lbf)


b.

Using a ball joint lock nut wrench, fully tighten the rear shock absorber assembly with the bolt (B).

Torque:
Specified tightening torque : 68 N*m (693 kgf*cm, 50 ft.*lbf)

HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)):

42.8 N*m (436 kgf*cm, 32 ft.*lbf)




Hide 65638A 5.INSTALL REAR WHEEL HOUSE LINER (w/ Wheel House Liner)

a.

Install the rear wheel house liner with the 2 clips and new grommet.
