RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381925 KNOCK SENSOR A

7GR-FKS ENGINE CONTROL KNOCK SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Knock control sensor	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)

PROCEDURE

Hide Display 1.REMOVE FUEL DELIVERY PIPE

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL INJECTOR (for Direct Injection)>REMOVAL201902,201906,_51,_079024,_0383260,RM100000001G9WB,201906,202310,_51,_079024,_0383260,RM100000001IZVK,202310,999999,_51,_079024,_0383260,RM100000002G337,

Hide Display 89615 2.REMOVE KNOCK CONTROL SENSOR

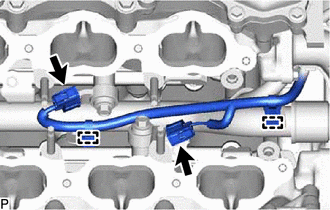

Detach the 2 wire harness clamps and disconnect the 2 connectors from the 2 knock control sensors.

Remove the 2 bolts and 2 knock control sensors.

NOTICE:: If a knock control sensor has been struck or dropped, replace it.
