7GR-FKS ENGINE CONTROL  KNOCK SENSOR  INSTALLATION

0.146,3.427 3.354,4.51 3.208,1.083 0.146,2.417 3.354,3.427 3.208,1.01 0.198,2.51 0.531,2.719 0.333,0.208 10 false *A 0.208,3.469 0.521,3.667 0.313,0.198 10 false *B 0.781,2.479 1.125,2.74 0.344,0.26 10 false *a 0.781,3.521 1.115,3.729 0.333,0.208 10 false *b 2.458,2.406 2.802,2.625 0.344,0.219 10 false *c 0.583,2.865 0.948,3.073 0.365,0.208 10 false *d 0.552,3.958 0.906,4.219 0.354,0.26 10 false *e 2.49,3.479 2.833,3.698 0.344,0.219 10 false *c 0.854,2.75 1.25,2.99 0.396,0.24 10 false 10° 0.896,2.99 1.292,3.229 0.396,0.24 10 false 5° 0.927,4.083 1.323,4.323 0.396,0.24 10 false 5° 0.865,3.854 1.26,4.094 0.396,0.24 10 false 10°

*A	for Bank 1
*B	for Bank 2
*a	View A
*b	View B
*c	Top
*d	Engine Front
*e	Engine Rear
	Front
	View A
	View B

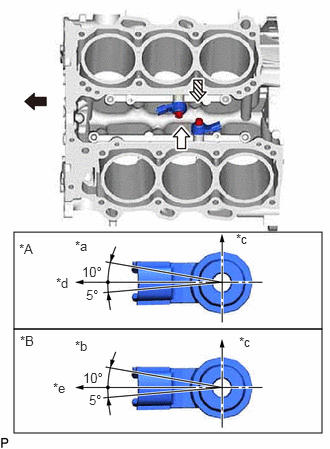

Install the 2 knock control sensors with the 2 bolts so that the knock control sensor installation position is as shown in the illustration.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:

·

Make sure that each knock control sensor is in the correct position.

·

If a knock control sensor has been struck or dropped, replace it.

·

Make sure that the knock control sensor is in the correct position.
