RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381923 IGNITION COIL AND SPARK PLUG A

7GR-FKS ENGINE CONTROL IGNITION COIL AND SPARK PLUG REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of ignition coil assembly · Replacement of spark plug	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)

PROCEDURE

Hide Display 17190 1.REMOVE INTAKE AIR SURGE TANK ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL201902,202310,_51,_079308,_0385725,RM100000001GNNS_01_0175,202310,999999,_51,_079308,_0385725,RM100000002G5DL_01_0175,

Hide Display 2.REMOVE AIR SWITCHING VALVE ASSEMBLY (w/ Secondary Air Injection System)

Click hereEngine / Hybrid System>7GR-FKS (EMISSION CONTROL)>AIR SWITCHING VALVE (w/ Secondary Air Injection System)>REMOVAL201902,201906,_51,_079025,_0383275,RM100000001G9XZ,201906,999999,_51,_079025,_0383275,RM100000001J16E,

Hide Display 12601B 3.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

a.

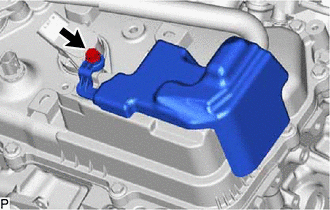

A443224

Remove the bolt and No. 1 engine cover sub-assembly.

Hide Display 82715 4.REMOVE WIRE HARNESS CLAMP BRACKET

a.

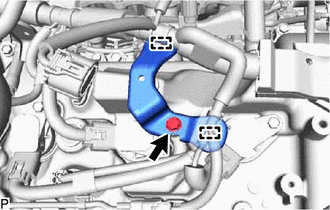

A443225

Detach the 2 wire harness clamps to disconnect the wire harness from the wire harness clamp bracket.

b.

Remove the bolt and wire harness clamp bracket.

Hide Display 19500 5.REMOVE IGNITION COIL ASSEMBLY

a.

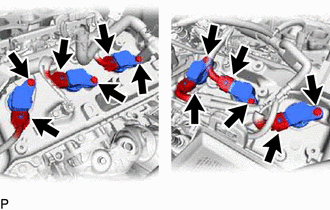

A443226

Disconnect the 6 connectors from the 6 ignition coil assemblies.

b.

Remove the 6 bolts and 6 ignition coil assemblies.

Hide Display 19100P 6.REMOVE SPARK PLUG

a.

Remove the 6 spark plugs from the cylinder head sub-assembly.

NOTICE:: If a spark plug has been struck or dropped, replace it.
