RM35X0E _51 Engine / Hybrid System _079025 7GR-FKS EMISSION CONTROL _0383275 AIR SWITCHING VALVE(w/ Secondary Air Injection System) A

7GR-FKS EMISSION CONTROL AIR SWITCHING VALVE(w/ Secondary Air Injection System) REMOVAL

PROCEDURE

Hide Display 11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Hide Display 53106B 2.REMOVE RADIATOR COVER SUB-ASSEMBLY

for Wagon:

except Wagon:

Hide Display 17751 3.REMOVE NO. 1 AIR CLEANER INLET

Hide Display 4.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Hide Display 17125 5.REMOVE NO. 1 SURGE TANK STAY

Hide Display 17361N 6.REMOVE NO. 1 AIR TUBE

Hide Display 17362 7.REMOVE NO. 2 AIR TUBE

Hide Display 8.REMOVE AIR SWITCHING VALVE ASSEMBLY

for RH Side:

Disconnect the air switching valve assembly connector.

ii.

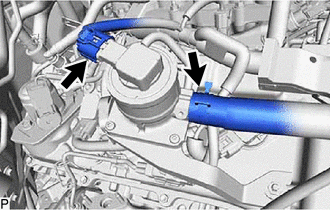

Slide the clip and disconnect the air tube from the air switching valve assembly.

iii.

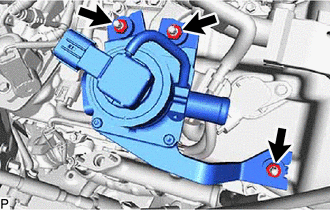

Remove the 3 nuts and air switching valve assembly.

for LH Side:

Disconnect the air switching valve assembly connector.

ii.

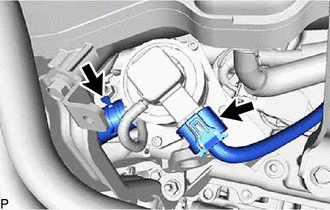

Slide the clip and disconnect the No. 3 air tube from the air switching valve assembly.

iii.

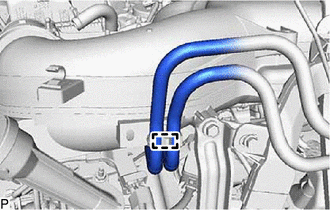

Detach the clamp and disconnect the No. 1 fuel pipe sub-assembly and No. 2 fuel pipe sub-assembly from intake air surge tank assembly.

iv.

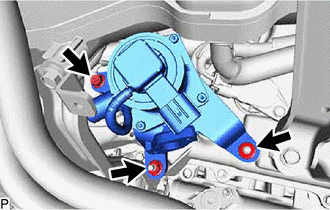

Remove the 2 nuts and bolt.

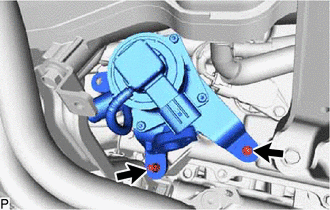

Using an E8 "TORX" socket wrench, remove the 2 stud bolts and air switching valve assembly.
