RM35X0E _54 Brake _078671 PARKING BRAKE _0381559 PARKING BRAKE SWITCH A

PARKING BRAKE PARKING BRAKE SWITCH REMOVAL

PROCEDURE

Hide Display 58810J 1.REMOVE CONSOLE BOX ASSEMBLY (for Separate Seat Type)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201902,201906,_58,_078375,_0380059,RM100000001FSDX,201906,999999,_58,_078375,_0380059,RM100000001IHPA,

Hide Display 58904B 2.REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY (except Separate Seat Type)

Click hereBrake>PARKING BRAKE>PARKING BRAKE SYSTEM (w/o Electric Parking Brake)>ADJUSTMENT201902,999999,_54,_078671,_0381555,RM100000001HHQ9_01_0020,

Hide Display 84550 3.REMOVE PARKING BRAKE SWITCH ASSEMBLY

a.

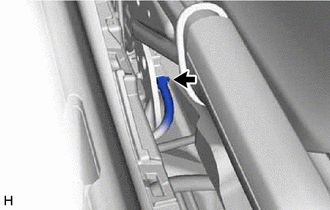

C413279

Disconnect the parking brake switch connector.

b.

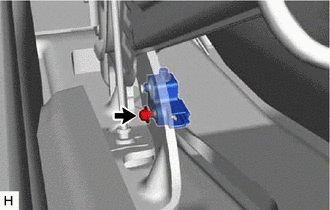

C413283

Remove the screw and parking brake switch assembly.
