BRAKE SYSTEM (OTHER)  VACUUM RESERVOIR(for LHD)  INSTALLATION

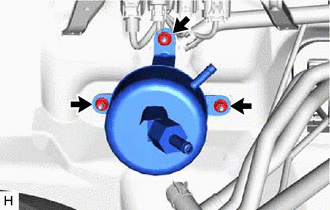

Install the vacuum reservoir assembly with the 3 nuts.

Torque:

8.5 N*m (87 kgf*cm, 75 in.*lbf)

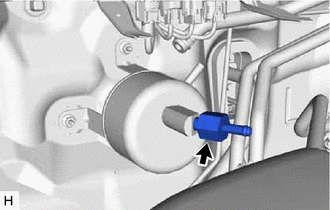

Tighten the vacuum check valve assembly.

Torque:

29.4 N*m (300 kgf*cm, 22 ft.*lbf)

1.438,1.219 1.438,0.552 1.438,0.552 1.688,0.552 true 1.76,0.469 2.01,0.688 0.25,0.219 10 true *a

*a	Paint Mark

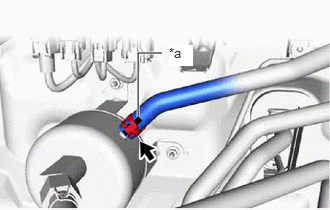

Connect the vacuum hose and slide the clip to secure it.

NOTICE:

·

Make sure to connect the vacuum hose with its paint mark facing the front of the vehicle.

·

Make sure that the tabs of the clip are facing the front of the vehicle.

0.833,1.49 1,1.49 1,1.49 1.302,1.229 true 0.604,1.385 0.854,1.604 0.25,0.219 10 true *a

*a	Paint Mark

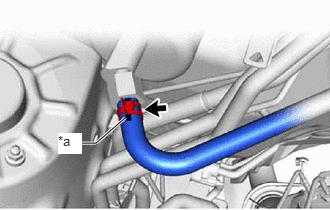

Connect the vacuum hose and slide the clip to secure it.

NOTICE:

·

When connecting the vacuum hose, face the paint mark up.

·

Make sure that the tabs of the clip are facing upward.

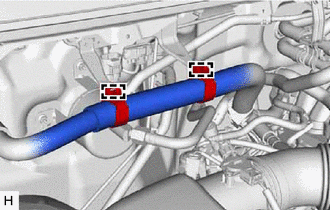

Engage the 2 clamps to install the engine room main wire to the wire harness clamp bracket and glow plug controller bracket.

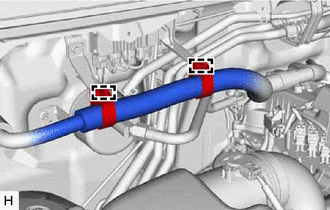

Engage the 2 clamps to install the engine room main wire to the wire harness clamp bracket.
