BRAKE SYSTEM (OTHER) VACUUM RESERVOIR(for LHD) REMOVAL
PROCEDURE
1.REMOVE WINDSHIELD WIPER MOTOR AND LINK
47220D
2.DISCONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
55738D
3.REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL
55701J
4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
82111
5.SEPARATE ENGINE ROOM MAIN WIRE (for 1GD-FTV)
Disengage the 2 clamps to separate the engine room main wire from the wire harness clamp bracket and glow plug controller bracket.
82111
6.SEPARATE ENGINE ROOM MAIN WIRE (for 7GR-FKS)
Disengage the 2 clamps to separate the engine room main wire from the wire harness clamp bracket.

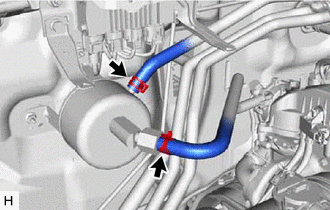

7.DISCONNECT VACUUM HOSE
Slide the 2 clips and disconnect the 2 vacuum hoses from the vacuum reservoir assembly.
44730
8.LOOSEN BRAKE VACUUM CHECK VALVE ASSEMBLY
- HINT:
-
This procedure is only performed when the brake vacuum check valve is being replaced or inspected.
Loosen the vacuum check valve assembly.
44740
9.REMOVE VACUUM RESERVOIR ASSEMBLY
Remove the 3 nuts and vacuum reservoir assembly.
