RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0381538 BRAKE BOOSTER(for LHD) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for LHD)  INSTALLATION


PROCEDURE

Hide 44785 1.INSTALL BRAKE BOOSTER GASKET

a.

Install a new brake booster gasket to the brake booster assembly.


Hide 44610 2.INSTALL BRAKE BOOSTER ASSEMBLY

a.

Install the brake booster assembly to the vehicle body with the 4 nuts.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Do not apply excessive force to the brake lines.



Hide 5.INSTALL BRAKE LINE

a.

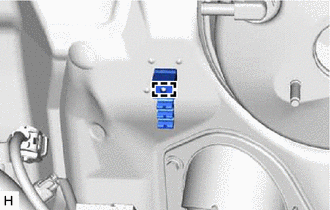

C410915

Engage the clamp and install a new brake tube clamp to the vehicle body.


b.

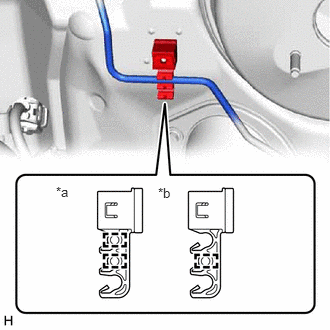

C410914C02
0.583,1.917 0.896,2.073 0.313,0.156 10 false *a 1.646,1.927 1.958,2.083 0.313,0.156 10 false *b
*a for Manual Transmission
*b for Automatic Transmission


for Manual Transmission:

Engage the 2 clamps to connect the brake tube clamp to the brake lines and clutch line.


c.

for Automatic Transmission:

Engage the clamp to connect the brake tube clamp to the brake line.


d.

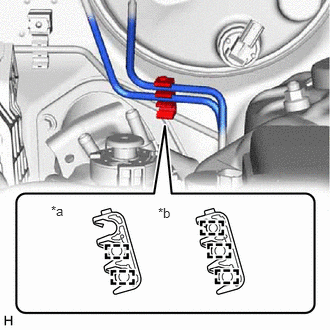

C410913C02
0.531,2.115 0.844,2.271 0.313,0.156 10 false *a 1.646,2.135 1.958,2.292 0.313,0.156 10 false *b
*a for Automatic Transmission
*b for Manual Transmission


for Manual Transmission:

Engage the 3 clamps to install a new brake tube clamp to the brake lines and clutch line.


e.

for Automatic Transmission:

Engage the 2 clamps to install a new brake tube clamp to the brake lines.


Hide 82111 8.CONNECT ENGINE ROOM MAIN WIRE

a.

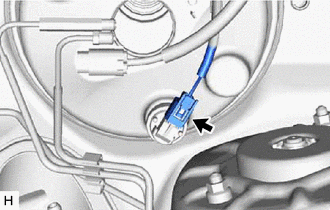

C410912

Connect the connector to the vacuum warning switch assembly.


Hide 44773F 9.CONNECT UNION TO CHECK VALVE HOSE

a.

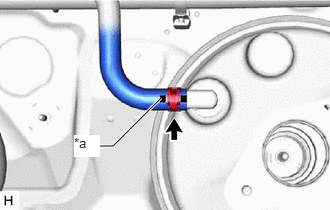

C410918C01
1.01,1.521 1.177,1.521 1.177,1.521 1.677,1.021 true 0.771,1.406 1.042,1.635 0.271,0.229 10 true *a
*a Paint Mark


Connect the union to check valve hose to the brake booster assembly and slide the clip to secure it.

NOTICE:
·

Make sure to connect the union to check valve hose with its paint mark facing the front of the vehicle.

·

Make sure that the tabs of the clip are facing the front of the vehicle.
