BRAKE SYSTEM (OTHER)  BRAKE MASTER CYLINDER(for RHD)  REMOVAL

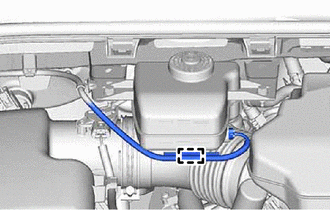

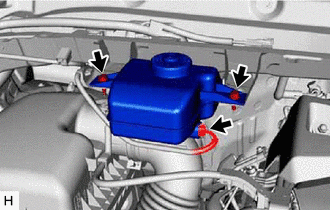

Detach the clamp and disconnect the wire harness from the brake master cylinder reservoir assembly.

Disconnect the connector from the brake master cylinder reservoir assembly.

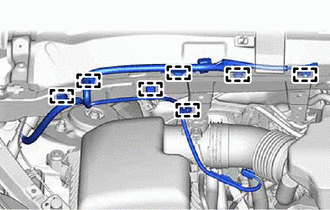

Detach the 7 clamps and disconnect the wire harness from the outer cowl top panel sub-assembly.

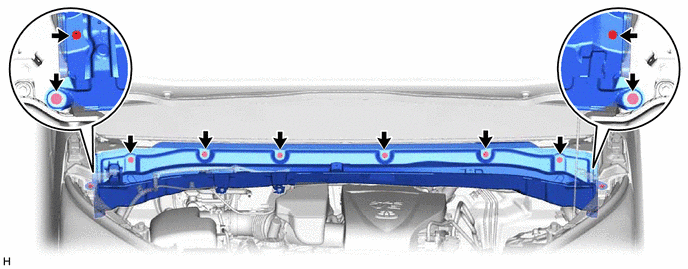

Remove the 10 bolts and outer cowl top panel sub-assembly.

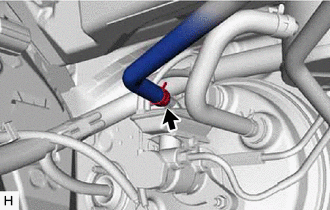

Slide the clip and disconnect the clutch reservoir tube from the brake master cylinder reservoir assembly.

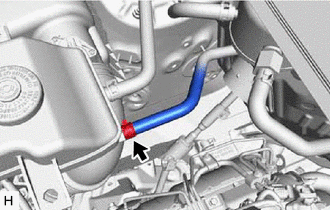

Slide the clip and disconnect the No. 1 reservoir hose from the brake master cylinder sub-assembly.

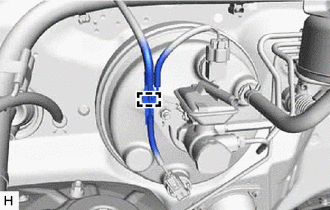

Detach the clamp and disconnect the wire harness from the wiring harness clamp bracket.

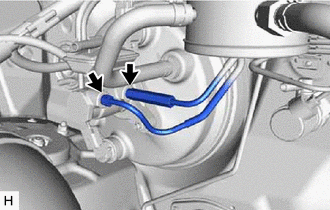

Using a union nut wrench, disconnect the 2 brake lines from the brake master cylinder sub-assembly.

NOTICE:

·

Do not damage or deform the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

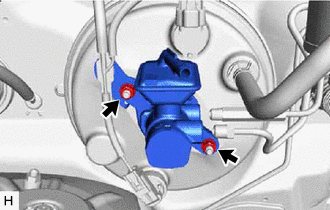

Remove the 2 nuts, brake master cylinder sub-assembly and wiring harness clamp bracket from the brake booster assembly.

NOTICE:

·

The brake master cylinder sub-assembly requires careful handling. Do not drop or subject the brake master cylinder sub-assembly to any impact. Do not reuse a brake master cylinder sub-assembly that has been dropped.

·

Do not hold the brake master cylinder sub-assembly by the master cylinder piston. Hold the brake master cylinder sub-assembly by its body or its reservoir when carrying it.

·

Do not pull out the master cylinder piston.

·

Do not strike or pinch the master cylinder piston, or cause any damage to the master cylinder piston by any other means.

·

When installing the brake master cylinder sub-assembly to the brake booster assembly, or when removing the brake master cylinder sub-assembly from the brake booster assembly, make sure that the brake master cylinder sub-assembly is kept horizontal or with its tip facing downward (the master cylinder piston is facing upward) to prevent the master cylinder piston from falling out.

·

Do not allow any foreign matter to contaminate the master cylinder piston. If any foreign matter gets on the master cylinder piston, remove it by using a piece of cloth and then apply an even layer of lithium soap base glycol grease around the circumference (sliding part) of the master cylinder piston.

·

Do not use any other type of grease or fluid.

·

Make sure to release vacuum from the brake booster assembly before removing the brake master cylinder sub-assembly from the brake booster assembly.
