BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  STEERING ANGLE SENSOR(w/ VSC)  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

A lock pin is installed to a new steering sensor. Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.


HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 89245B 2.INSTALL STEERING SENSOR

a.

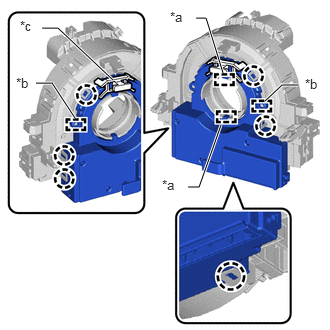

C414063C01
1.906,1.948 2.073,1.948 2.073,1.948 2.302,1.302 true 1.979,0.188 2.146,0.188 2.146,0.188 2.323,0.76 true 0.438,0.292 0.604,0.292 0.604,0.292 1.177,0.833 true 0.375,0.865 0.542,0.865 0.542,0.865 0.781,1.229 true 2.76,1.052 2.938,0.885 2.938,0.885 3.104,0.885 true 1.688,1.844 1.958,2.052 0.271,0.208 10 true *a 0.167,0.781 0.531,1.063 0.365,0.281 10 false *b 0.208,0.188 0.521,0.344 0.313,0.156 10 false *c 1.771,0.094 2.042,0.302 0.271,0.208 10 true *a 3.177,0.792 3.427,1 0.25,0.208 10 false *b
*a Guide
*b Pin
*c Lock Pin


Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.

NOTICE:
·

Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.

·

Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.

·

The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.




b.

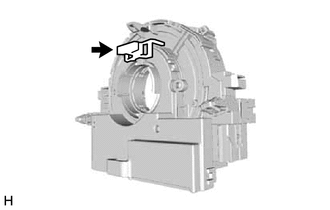

C370153

Remove the lock pin from the steering sensor.
