RM35X0E _51 Engine / Hybrid System _078603 7GR-FKS ENGINE MECHANICAL _0381341 FRONT CRANKSHAFT OIL SEAL A

7GR-FKS ENGINE MECHANICAL FRONT CRANKSHAFT OIL SEAL REMOVAL

PROCEDURE

Hide Display 1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201902,201906,_58,_079316,_0384872,RM100000001GISH_01_0001,201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0001,

Hide Display 16711 2.REMOVE FAN SHROUD

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>WATER PUMP>REMOVAL201902,999999,_51,_079310,_0386772,RM100000001GTQ0,

Hide Display 88703 3.DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>REMOVAL201902,999999,_58,_079316,_0384886,RM100000001GIU1_01_0004,

Hide Display 88704 4.DISCONNECT SUCTION HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>REMOVAL201902,999999,_58,_079316,_0384886,RM100000001GIU1_01_0003,

Hide Display 16268 5.DISCONNECT NO. 1 WATER BY-PASS PIPE

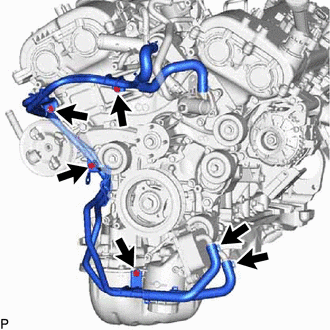

a.

A443670

Slide the 2 hose clamps and disconnect the 2 water by-pass hoses from the oil cooler assembly.

b.

Remove the 3 bolts and nut and disconnect the No. 1 water by-pass pipe.

Hide Display 15609 6.REMOVE OIL FILTER BRACKET SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PUMP>REMOVAL201902,201906,_51,_078604,_0381351,RM100000001FZOK_01_0018,201906,202006,_51,_078604,_0381351,RM100000001J0ZY_01_0018,202006,202310,_51,_078604,_0381351,RM100000001PGYR_01_0018,202310,999999,_51,_078604,_0381351,RM100000002H4CK_01_0018,

Hide Display 13471 7.REMOVE CRANKSHAFT PULLEY

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PUMP>REMOVAL201902,201906,_51,_078604,_0381351,RM100000001FZOK_01_0019,201906,202006,_51,_078604,_0381351,RM100000001J0ZY_01_0019,202006,202310,_51,_078604,_0381351,RM100000001PGYR_01_0019,202310,999999,_51,_078604,_0381351,RM100000002H4CK_01_0019,

Hide Display 11301C 8.REMOVE FRONT CRANKSHAFT OIL SEAL

a.

A436688

Using a screwdriver, pry out the front crankshaft oil seal.

NOTICE:: Do not damage the surface of the front crankshaft oil seal press fit hole or crankshaft.

HINT:: Tape the screwdriver tip before use.
