RM35X0E _51 Engine / Hybrid System _078604 7GR-FKS LUBRICATION _0381350 OIL LEVEL SENSOR A

7GR-FKS LUBRICATION OIL LEVEL SENSOR REMOVAL

PROCEDURE

Hide Display 1.REMOVE ENGINE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC,201906,202107,_51,_078603,_0381343,RM100000001J10U,202107,202310,_51,_078603,_0381343,RM100000001XZUP,202310,999999,_51,_078603,_0381343,RM100000002G637,

Hide Display 2.INSTALL ENGINE TO ENGINE STAND

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0050,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0050,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0050,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0050,

Hide Display 12102A 3.REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PUMP>REMOVAL201902,201906,_51,_078604,_0381351,RM100000001FZOK_01_0027,201906,202006,_51,_078604,_0381351,RM100000001J0ZY_01_0027,202006,202310,_51,_078604,_0381351,RM100000001PGYR_01_0027,202310,999999,_51,_078604,_0381351,RM100000002H4CK_01_0027,

Hide Display 15104 4.REMOVE OIL STRAINER SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PUMP>REMOVAL201902,201906,_51,_078604,_0381351,RM100000001FZOK_01_0028,201906,202006,_51,_078604,_0381351,RM100000001J0ZY_01_0028,202006,202310,_51,_078604,_0381351,RM100000001PGYR_01_0028,202310,999999,_51,_078604,_0381351,RM100000002H4CK_01_0028,

Hide Display 89491 5.REMOVE ENGINE OIL LEVEL SENSOR

a.

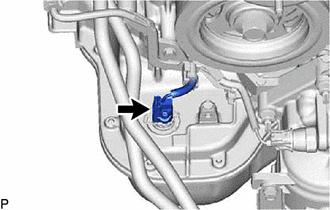

A436674

Disconnect the engine oil level sensor connector.

b.

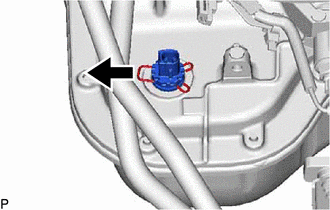

A436675

Remove the clip from the engine oil level sensor.

c.

A436678

Detach the clamp and remove the 2 nuts and engine oil level sensor.

Hide Display 15367 6.REMOVE OIL LEVEL SENSOR BRACKET

a.

A436679

Remove the 2 nuts and oil level sensor bracket.
