NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter

DESCRIPTION

The No. 1 stereo jack adapter assembly sends the sound signal from an external device to the radio and display receiver assembly via this circuit.

The sound signal that has been sent is amplified by the radio and display receiver assembly and then is sent to the speakers.

If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the radio and display receiver assembly or speakers.

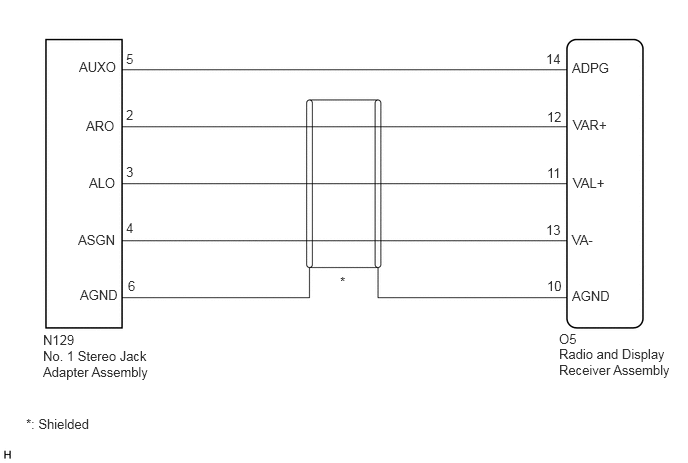

WIRING DIAGRAM

3.542,2.854 4.385,3.167 0.844,0.313 10 false * 0.823,0.615 1.344,0.896 0.521,0.281 10 false AUXO 0.896,1.229 1.417,1.51 0.521,0.281 10 false ARO 0.813,2.417 1.333,2.698 0.521,0.281 10 false ASGN 0.833,2.99 1.354,3.271 0.521,0.281 10 false AGND 0.448,3.458 0.969,3.74 0.521,0.281 10 false N129 0.448,3.625 1.594,4.156 1.146,0.531 10 false No. 1 Stereo Jack Adapter Assembly 1.313,0.531 1.833,0.813 0.521,0.281 10 false 5 1.313,1.115 1.833,1.396 0.521,0.281 10 false 2 1.313,1.708 1.833,1.99 0.521,0.281 10 false 3 1.313,2.292 1.833,2.573 0.521,0.281 10 false 4 1.333,2.896 1.854,3.177 0.521,0.281 10 false 6 5.688,0.531 6.208,0.813 0.521,0.281 10 false 14 5.698,1.719 6.219,2 0.521,0.281 10 false 11 5.688,2.313 6.208,2.594 0.521,0.281 10 false 13 5.698,2.896 6.219,3.177 0.521,0.281 10 false 10 5.823,3.448 6.344,3.729 0.521,0.281 10 false O5 5.823,3.604 7.052,4.271 1.229,0.667 10 false Radio and Display Receiver Assembly 0.927,1.823 1.448,2.104 0.521,0.281 10 false ALO 5.958,0.625 6.479,0.906 0.521,0.281 10 false ADPG 5.969,1.219 6.49,1.5 0.521,0.281 10 false VAR+ 5.698,1.135 6.219,1.417 0.521,0.281 10 false 12 5.969,1.823 6.49,2.104 0.521,0.281 10 false VAL+ 5.958,2.417 6.479,2.698 0.521,0.281 10 false VA- 5.958,3 6.479,3.281 0.521,0.281 10 false AGND 0.271,4.333 1.115,4.646 0.844,0.313 10 false *: Shielded

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)

1.563,2.458 1.99,2.729 0.427,0.271 1.542,0.281 1.927,0.542 0.385,0.26 1.594,3.594 1.073,3.042 true 1.469,3.604 0.969,3.302 true 1.698,3.615 1.302,2.833 true 1.938,3.635 2.438,3.271 true 1.823,3.615 2.208,2.979 true 1.844,1.583 2.073,0.792 true 2.021,1.573 2.74,1.031 true 1.906,1.594 2.563,0.781 true 1.604,1.594 1.115,0.99 true 2.167,1.583 2.771,1.385 true 0.26,2.469 0.573,2.667 0.313,0.198 10 false *b 1.656,0.323 1.969,0.521 0.313,0.198 10 false O5 1.615,2.5 2.094,2.698 0.479,0.198 10 false N129 0.25,0.146 0.563,0.344 0.313,0.198 10 false *a 1.948,0.625 2.333,0.823 0.385,0.198 10 false VAL+ 2.469,0.625 2.885,0.823 0.417,0.198 10 false VAR+ 2.771,0.917 3.083,1.115 0.313,0.198 10 false VA- 2.813,1.292 3.25,1.51 0.438,0.219 10 false ADPG 0.708,0.813 1.281,1.031 0.573,0.219 10 false AGND 2.385,3.104 2.958,3.323 0.573,0.219 10 false AGND 0.896,2.865 1.313,3.063 0.417,0.198 10 false ALO 1.125,2.667 1.729,2.875 0.604,0.208 10 false ASGN 0.698,3.135 1.156,3.333 0.458,0.198 10 false ARO 2.073,2.813 2.51,3.031 0.438,0.219 10 false AUXO

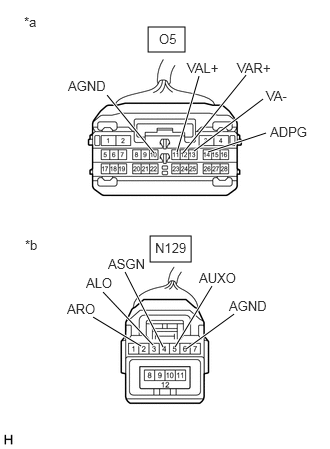

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)
*b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Disconnect the O5 radio and display receiver assembly connector.

Disconnect the N129 No. 1 stereo jack adapter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O5-14 (ADPG) - N129-5 (AUXO)	Always	Below 1 Ω
O5-10 (AGND) - N129-6 (AGND)	Always	Below 1 Ω
O5-12 (VAR+) - N129-2 (ARO)	Always	Below 1 Ω
O5-11 (VAL+) - N129-3 (ALO)	Always	Below 1 Ω
O5-13 (VA-) - N129-4 (ASGN)	Always	Below 1 Ω
O5-14 (ADPG) or N129-5 (AUXO) - Body ground	Always	10 kΩ or higher
O5-10 (AGND) or N129-6 (AGND) - Body ground	Always	10 kΩ or higher
O5-12 (VAR+) or N129-2 (ARO) - Body ground	Always	10 kΩ or higher
O5-11 (VAL+) or N129-3 (ALO) - Body ground	Always	10 kΩ or higher
O5-13 (VA-) or N129-4 (ASGN) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PROBLEM SYMPTOMS TABLE201902,201906,_56,_078379,_0380999,RM100000001FWSB,201906,202006,_56,_078379,_0380999,RM100000001IG06,202006,202107,_56,_078379,_0380999,RM100000001P0XF,202107,999999,_56,_078379,_0380999,RM100000001Y0CX,

REPAIR OR REPLACE HARNESS OR CONNECTOR
