RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384449 CLEARANCE LIGHT ASSEMBLY A

LIGHTING (EXT) CLEARANCE LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

Hide Display 81620A 2.REMOVE CLEARANCE LIGHT ASSEMBLY LH

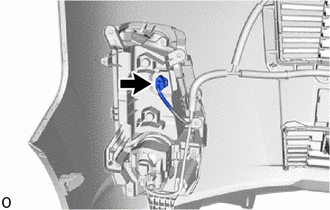

Disconnect the connector.

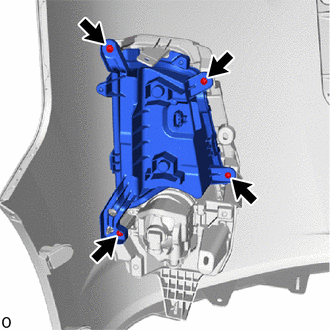

Remove the 4 screws and clearance light assembly LH.
